Lab 1: Mobile Robotics

Info

You should be able to complete exercises 1-7 on this page within a two-hour lab session.

Introduction¶

In this first AMR31001 'Industry 4.0' Lab you will learn how to use ROS 2 (the latest version of the Robot Operating System) to control a robot's motion.

ROS 2 is an open-source, industry-standard robot programming framework, used in a range of industries such as agriculture, warehouse and factory automation and advanced manufacturing.

ROS 2 allows us to programme robots using a range of different programming languages (including C++, Java, MATLAB etc.), but we'll be using Python for these labs. In addition to this, ROS 2 runs on top of a Linux operating system called 'Ubuntu', and so we'll also learn a bit about how to use this too.

We'll be working with robots called 'TurtleBot3 Waffles', which you can find out a bit more about here.

Pre-Lab Work

You must have completed the Pre-Lab Test before you can make a start on this lab. This is available on the AMR31001 Blackboard Course Page.

Assessment Info

This lab is summatively assessed.

There's a post-lab quiz that you'll need to complete after this lab session has taken place, which will be released on Blackboard.
You'll also be marked on the work that you do in the lab for Exercise 7.

Aims¶

In this lab you'll learn how to use ROS 2 to make a robot move, and we'll also look at how to create our own basic ROS 2 script (or 'Node'), using Python.

From here on, we'll refer to ROS 2 as "ROS" for convenience!

Intended Learning Outcomes¶

By the end of this session you will be able to:

Control a TurtleBot3 Waffle Robot, from a laptop, using ROS.
Launch ROS applications on the laptop and the robot using ros2 launch and ros2 run.
Interrogate a ROS network using ROS command-line and graphical tools.
Use ROS Communication Methods to publish messages.
Use a Linux operating system and work within a Linux Terminal.

Quick Links¶

Exercise 1: Launching ROS and Making your Robot Move
Exercise 2: Seeing the Waffle's Sensors in Action!
Exercise 3: Visualising the ROS Network
Exercise 4: Exploring ROS Topics and Messages
Exercise 5: Publishing Velocity Commands to the /cmd_vel Topic
Exercise 6: Creating a ROS Package
Exercise 7: A Python node to make the robot move
Exercise 8 (Advanced): Alternative Motion Paths

The Lab¶

Getting Started¶

Before you do anything, you'll need to get your robot up and running, and make sure ROS is launched.

Exercise 1: Launching ROS and Making your Robot Move¶

You should have already been provided with a Robot and a Laptop (in fact, you're probably already reading this on the laptop!)

First, identify the robot that you have been provided with. Each of our robots are uniquely named: dia-waffleX, where X is the 'Robot Number' (a number between 1 and 50). Check the label printed on top of the robot to find out which one you have!
Open up a terminal instance on the laptop, either by pressing the Ctrl+Alt+T buttons on your keyboard all at the same time, or by clicking the Terminal App icon in the favourites bar on the left-hand side of the desktop:

We'll refer to this terminal as TERMINAL 1.
In TERMINAL 1 type the following command to pair the laptop and robot, so that they can work together:

TERMINAL 1:
```
waffle X pair
```
... replacing X with the number of the robot that you have been provided with.
Enter the password for the robot when requested (we'll tell you what this is in the lab).

You may see a message like this early on in the pairing process:

If so, just type yes and then hit Enter to confirm that you want to continue.
Once the pairing process is finished you should see a message saying pairing complete, displayed in blue in the terminal.
Then, in the same terminal (TERMINAL 1), enter the following command:

TERMINAL 1:
```
waffle X term
```
(again, replacing X with the number of your robot).

Any text that was in the terminal should now disappear, and a green banner should appear across the bottom of the terminal window:

This is a terminal instance running on the robot, and any commands that you enter here will be executed on the robot (not the laptop!)
Now, launch ROS on the robot by entering the following command:

TERMINAL 1:
```
ros2 launch tuos_tb3_tools ros.launch.py enable_depth:=true
```
Tip

To paste text into a Linux terminal you'll need to use the Control + Shift + V keyboard keys: Ctrl+Shift+V

If all is well then the robot will play a nice "do-re-me" sound and a message like this should appear (amongst all the other text):
```
[tb3_status.py-#] ######################################
[tb3_status.py-#] ### dia-waffleX is up and running! ###
[tb3_status.py-#] ######################################
```
You shouldn't need to interact with this terminal instance any more now, but the screen will provide you with some regular real-time info related to the status of the robot. As such, keep this terminal open in the background and check on the Battery indicator every now and then:
```
Battery: 12.40V [100%]
```
Low Battery

The robot's battery won't last a full 2-hour lab session!!

When the capacity indicator reaches around 15% then it will start to beep, and when it reaches ~10% it will stop working all together. Let a member of the teaching team know when the battery is running low and we'll replace it for you. (It's easier to do this when it reaches 15%, rather than waiting until it runs below 10%!)

ROS is now up and running on the robot, and we're ready to go!

You should leave TERMINAL 1 alone now, just leave it running in the background for the rest of the lab.
The next crucial step is to connect the laptop to the ROS network that we've just established on the robot. The two devices will communicate with one another via the University Wireless network, but there's one more step required to link them together.

Open up a new terminal instance on the laptop (either by using the Ctrl+Alt+T keyboard shortcut, or by clicking the Terminal App icon) and enter the following command:

TERMINAL 2:
```
ros2 run rmw_zenoh_cpp rmw_zenohd
```
Leave both of these terminals alone, but keep them running in the background at all times while working with your robot.
Next, open up a new terminal instance on the laptop (by pressing Ctrl+Alt+T or clicking the Terminal App desktop icon, as you did before). We'll call this one TERMINAL 3.
In TERMINAL 3 enter the following command:

TERMINAL 3:
```
ros2 run turtlebot3_teleop teleop_keyboard
```
Follow the instructions provided in the terminal to drive the robot around using specific buttons on the keyboard:
Enter Ctrl+C in TERMINAL 3 to stop the Teleop node when you've had enough fun.

Packages and Nodes¶

ROS applications are organised into packages. Packages are basically folders containing scripts, configurations and launch files (ways to launch those scripts and configurations).

Scripts tell the robot what to do and how to act. In ROS, these scripts are called nodes. ROS Nodes are executable programs that perform specific robot tasks and operations. These are typically written in C++ or Python, but it's possible to write ROS Nodes using other programming languages too.

In Exercise 1 you launched a whole range of different nodes on the ROS Network using the ros2 launch and ros2 run commands:

ros2 launch tuos_tb3_tools ros.launch.py ... (on the robot, in TERMINAL 1)
ros2 run rmw_zenoh_cpp rmw_zenohd (on the laptop, in TERMINAL 2)
ros2 run turtlebot3_teleop teleop_keyboard (on the laptop, in TERMINAL 3)

The first of the above was a ROS launch command, which has the following key parts to it (after the ros2 launch bit):

ros2 launch {[1] Package name} {[2] Launch file} {[3] Arguments (optional)}

The first two of these are the most important:

Part [1] specifies the name of the ROS package containing the functionality that we want to execute.
Part [2] is a file within that package that tells ROS exactly what scripts ('nodes') that we want to launch. We can launch multiple nodes at the same time from a single launch file.

The second and third commands were ROS run commands:

ros2 run {[1] Package name} {[2] Node name}

Here, Part [1] is the same as the ros2 launch command, but Part [2] is slightly different: {[2] Node name}. Here we are directly specifying a single script that we want to execute. We therefore use ros2 run if we only want to launch a single node on the ROS network (e.g. teleop_keyboard, which is a Python script).

Post-lab

What were the names of the three packages that we invoked in Exercise 1?

Exercise 2: Seeing the Waffle's Sensors in Action!¶

Our Waffles have some pretty sophisticated sensors on them, allowing them to "see" the world around them. We won't really make much use of these during this lab, but this next exercise will allow you to see how the data from these devices could be used to help our robots do some very advanced things (with some clever programming, of course!)

Part 1: The Camera¶

There shouldn't be anything running in TERMINAL 3 now, after you closed down the teleop_keyboard node at the end of the previous exercise (Ctrl+C). Return to this terminal and launch the rqt_image_view node:

TERMINAL 3:
```
ros2 run rqt_image_view rqt_image_view
```
Post-lab
1. We're using ros2 run here again, what does this mean?
2. Why did we have to type rqt_image_view twice?
A new window should open. Maximise this (if it isn't already) and then select /camera/color/image_raw from the dropdown menu at the top-left of the application window.
Live images from the robot's camera should now be visible! Stick your face in front of the camera and see yourself appear on the laptop screen!
Close down the window once you've had enough (enter Ctrl+C in TERMINAL 3). This should release TERMINAL 3 so that you can enter commands in it again.

The camera on the robot is quite a clever device. Inside the unit is two separate image sensors, giving it - effectively - both a left and right eye. The device then combines the data from both of these sensors and uses the combined information to infer depth from the images as well. Let's have a look at that in action now...
In TERMINAL 3 enter the following command:

TERMINAL 3:
```
ros2 launch tuos_tb3_tools rviz.launch.py
```
This will launch an application called RViz, which is a handy tool that allows us to visualise the data from all the sensors on-board our robots. When RViz opens, you should see something similar to the following:

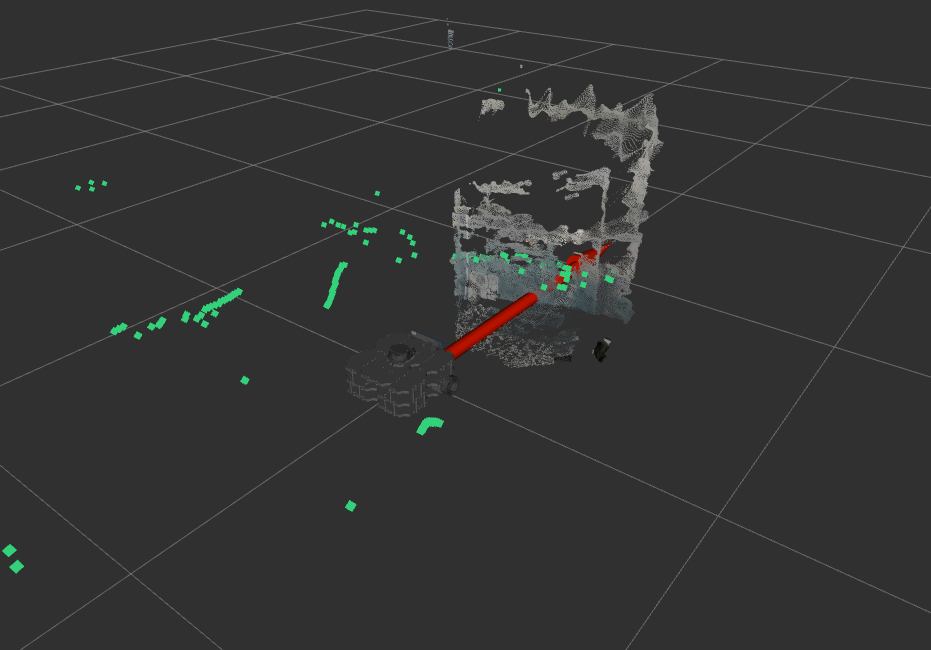

In the "Displays" menu on the left-hand side, click on the tick box next to the "DepthCloud" item.

The strange wobbly sheet of colour that should appear in front of the robot is the live image stream from the camera with depth applied to it at the same time. The camera is able to determine how far away each image pixel is from the camera lens, and then uses that to generate this 3-dimensional representation.
Again, place your hand or your face in front of the camera and hold steady for a few seconds (there may be a bit of a lag as all of this data is transmitted over the WiFi network). You should see yourself rendered in 3D in front of the robot!

Part 2: The LiDAR Sensor¶

In RViz you may have also noticed a lot of green dots scattered around the robot. This is a representation of the displacement data coming from the LiDAR sensor (the black device on the top of the robot). The LiDAR sensor spins continuously, sending out laser pulses into the environment as it does so. When a pulse hits an object it is reflected back to the sensor, and the time it takes for this to happen is used to calculate how far away the object is.

The LiDAR sensor spins and performs this process continuously at 1° increments, so a full 360° scan of the environment can be generated. This data is therefore really useful for things like obstacle avoidance and mapping. We'll have a quick look at the latter now.

Close down RViz (click the "Close without saving" button, if asked).
Head back to TERMINAL 3 and run the following command:

TERMINAL 3:
```
ros2 launch tuos_tb3_tools slam.launch.py
```

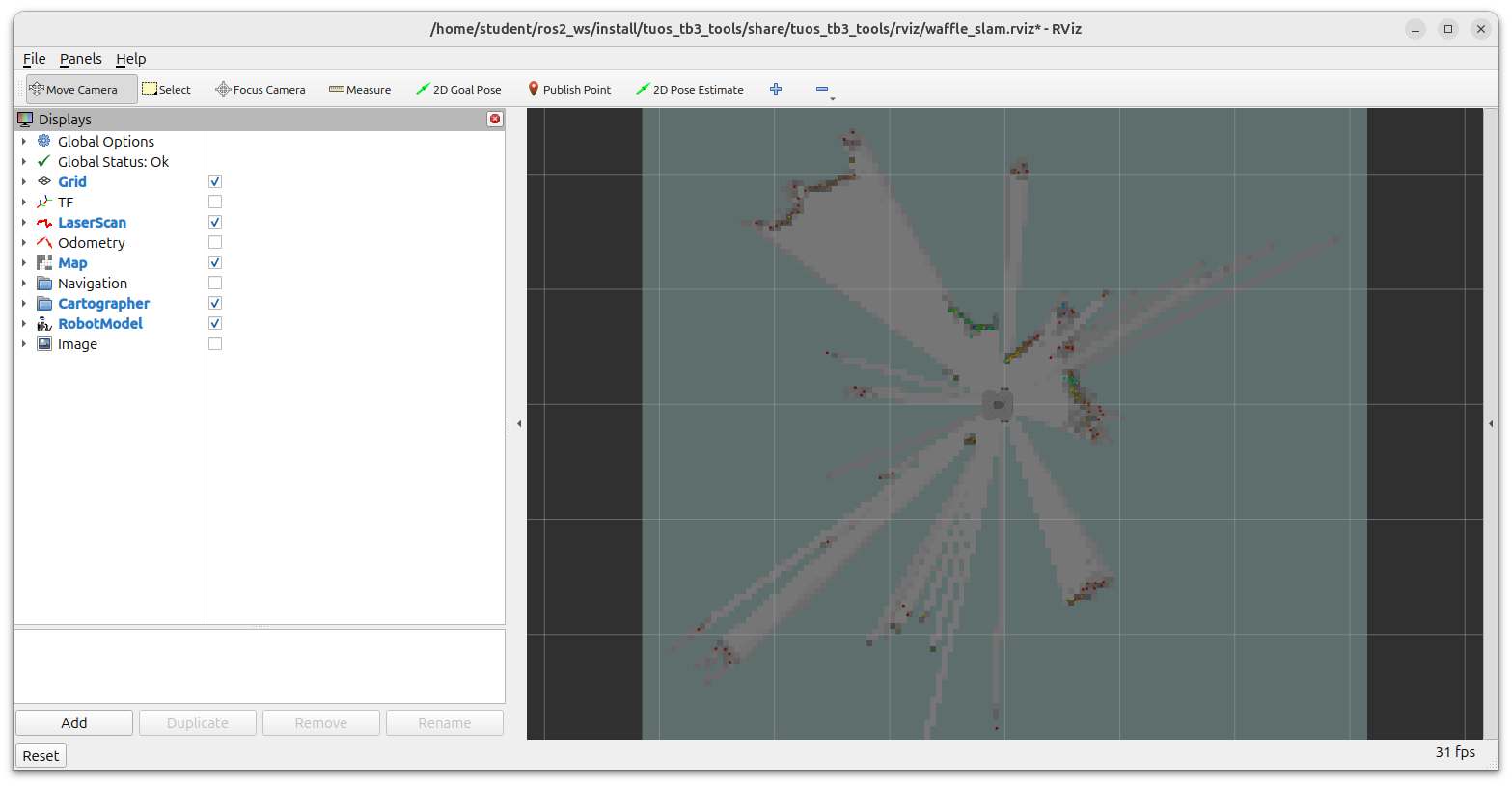

A new RViz screen will open up, this time showing the robot from a top-down view, and with the LiDAR data represented by multi-coloured dots this time instead.

Underneath the LiDAR dots you should notice a map starting to form, with black lines representing fixed objects in the environment and white areas representing free space that the robot could travel around. ROS is using a process called SLAM (Simultaneous Localisation and Mapping) to generate a map of the environment, using the data from the LiDAR sensor.
Open up a new terminal instance now, we'll call this one TERMINAL 4. Launch the teleop_keyboard node in this one, in the same way that you did earlier:

TERMINAL 4:
```
ros2 run turtlebot3_teleop teleop_keyboard
```
Drive the robot around a bit and watch how the map in RViz is updated as the robot explores new parts of the environment.
Enter Ctrl+C in TERMINAL 4 to stop the teleop_keyboard node.
Close down the RViz window, or enter Ctrl+C in TERMINAL 3 to stop it too.

We've now used both ros2 launch and ros2 run to launch ROS applications. These are both ROS command-line tools, and there are many others at our disposal.

Using ros2 run and ros2 launch, as we have done so far, it's easy to end up with a lot of different processes or ROS Nodes running on the network, some of which we will interact with, but others may just be running in the background. It is often useful to know exactly what is running on the ROS network, and there are a number of ways to do this.

Exercise 3: Visualising the ROS Network¶

There shouldn't be anything running in TERMINAL 3 now, so return to this terminal and use the ros2 node command to list the nodes that are currently running on the robot:

TERMINAL 3:
```
ros2 node list
```
You should see a list of 6 items.
We can visualise the connections between the active nodes by using a ROS node called rqt_graph. Launch this as follows:

TERMINAL 3:
```
ros2 run rqt_graph rqt_graph
```
In the window that opens, select Nodes/Topics (active) from the dropdown menu in the top left.

What you should then see is a map of all the nodes in the list from above (as ovals), and arrows to illustrate the flow of information between them. This is a visual representation of the ROS network!

Items that have a rectangular border are ROS Topics. ROS Topics are essentially communication channels, and ROS nodes can read (subscribe) or write (publish) to these topics to access sensor data, pass information around the network and make things happen.
Return to TERMINAL 4 and launch the teleop_keyboard node again:

TERMINAL 4:
```
ros2 run turtlebot3_teleop teleop_keyboard
```
Go back to the RQT Graph window now and hit the refresh icon (to the left of the Nodes/Topics (active) dropdown menu).

Post-lab

What's changed? Make sure you know how to interpret these graphs.

A ROS Robot could have hundreds of individual nodes running simultaneously to carry out all its necessary operations and actions. Each node runs independently, but uses ROS communication methods to communicate and share data with the other nodes on the ROS Network.

Publishers and Subscribers: A ROS Communication Method¶

ROS Topics are key to making things happen on a robot. Nodes can publish (write) and/or subscribe to (read) ROS Topics in order to share data around the ROS network. We have to use standardised data structures in ROS in order for this to all work. Different topics use different data structures, and there are a lot of different data structure types available for us to use (we can even define our own, but this is beyond the scope if this lab session). Let's have a look at Topics and their data structures in a bit more detail now...

Exercise 4: Exploring ROS Topics and Interfaces¶

Much like the ros2 node list command, we can use ros2 topic list to list all the topics that are currently active on the network.

Close down the rqt_graph window if you haven't done so already. This will release TERMINAL 3 so that we can enter commands in it again. Leave the teleop_keyboard node in TERMINAL 4 running. Return to TERMINAL 3 and enter the following:

TERMINAL 3:
```
ros2 topic list
```
A much larger list of items should be printed to the terminal now. See if you can spot /cmd_vel in the list.

This topic is used to control the velocity of the robot ('command velocity').
Let's find out more about this using the ros2 topic info command.

TERMINAL 3:
```
ros2 topic info /cmd_vel
```
This should provide an output similar to the following:
```
Type: geometry_msgs/msg/TwistStamped
Publisher count: 1
Subscription count: 1
```
This tells us a few things:
1. The /cmd_vel topic currently has 1 publisher (i.e. 1 node writing data to the topic).
2. There's also 1 subscriber (i.e. another node reading the data being written to the topic).
3. If we think back to rqt_graph (from the previous exercise), we know that the publisher is the /teleop_keyboard node, and the subscriber is a node called /turtlebot3_node. This node turns the topic data into motor commands, resulting in actual motion of the robot's wheels.
4. The type of data structure used by the /cmd_vel topic is defined as:

  geometry_msgs/msg/TwistStamped

  This is a ROS "Interface".

  Interfaces

  Data structures in ROS 2 are called Interfaces.

  From the output above, Type refers to the type of data structure (i.e. the type of interface). The Type definition has three parts to it: geometry_msgs, msg and TwistStamped:
  1. geometry_msgs is the name of the ROS package that this interface (data structure) belongs to
  2. msg tells us that it's a topic message interface (rather than another interface type, of which there are others, but we don't need to worry about them here)
  3. TwistStamped is the name of the message interface.
  We have just learnt then, that if we want to make the robot move we need to publish TwistStamped interface messages to the /cmd_vel topic.

We can use the ros2 interface command to find out more about the TwistStamped message:

TERMINAL 3:

ros2 interface show geometry_msgs/msg/TwistStamped

From this, the bottom bit is of most interest to us:

Twist twist
        Vector3  linear
                float64 x
                float64 y
                float64 z
        Vector3  angular
                float64 x
                float64 y
                float64 z

Hmmm, this looks complicated. Let's find out what it all means...

Velocity Control¶

The motion of any mobile robot can be defined in terms of its three principal axes: X, Y and Z. In the context of our TurtleBot3 Waffle, these axes (and the motion about them) are defined as follows:

In theory then, a robot can move linearly or angularly about any of these three axes, as shown by the arrows in the figure. That's six Degrees of Freedom (DOFs) in total, achieved based on a robot's design and the actuators it is equipped with. Take a look back at the ros2 interface show output in TERMINAL 3. Hopefully it's a bit clearer now that these topic messages are formatted to give a ROS Programmer the ability to ask a robot to move in any one of its six DOFs.

Vector3  linear
        float64 x  <-- Forwards (or Backwards)
        float64 y  <-- Left (or Right)
        float64 z  <-- Up (or Down)
Vector3  angular
        float64 x  <-- "Roll"
        float64 y  <-- "Pitch"
        float64 z  <-- "Yaw"

Our TurtleBot3 only has two motors, so it doesn't actually have six DOFs! These two motors can be controlled independently, in a "differential drive" configuration, but this still only allows it to move with two degrees of freedom in total, as illustrated below.

Velocity can therefore only be applied linearly in the x-axis (Forwards/Backwards) and angularly in the z-axis (Yaw).

Post-lab

Take note of all this, there may be a question on it!

Exercise 5: Publishing Velocity Commands to the "cmd_vel" Topic¶

Stop the teleop_keyboard node now by entering Ctrl+C in TERMINAL 4. We're going to use another graphical tool to help us publish messages to the /cmd_vel topic directly now.

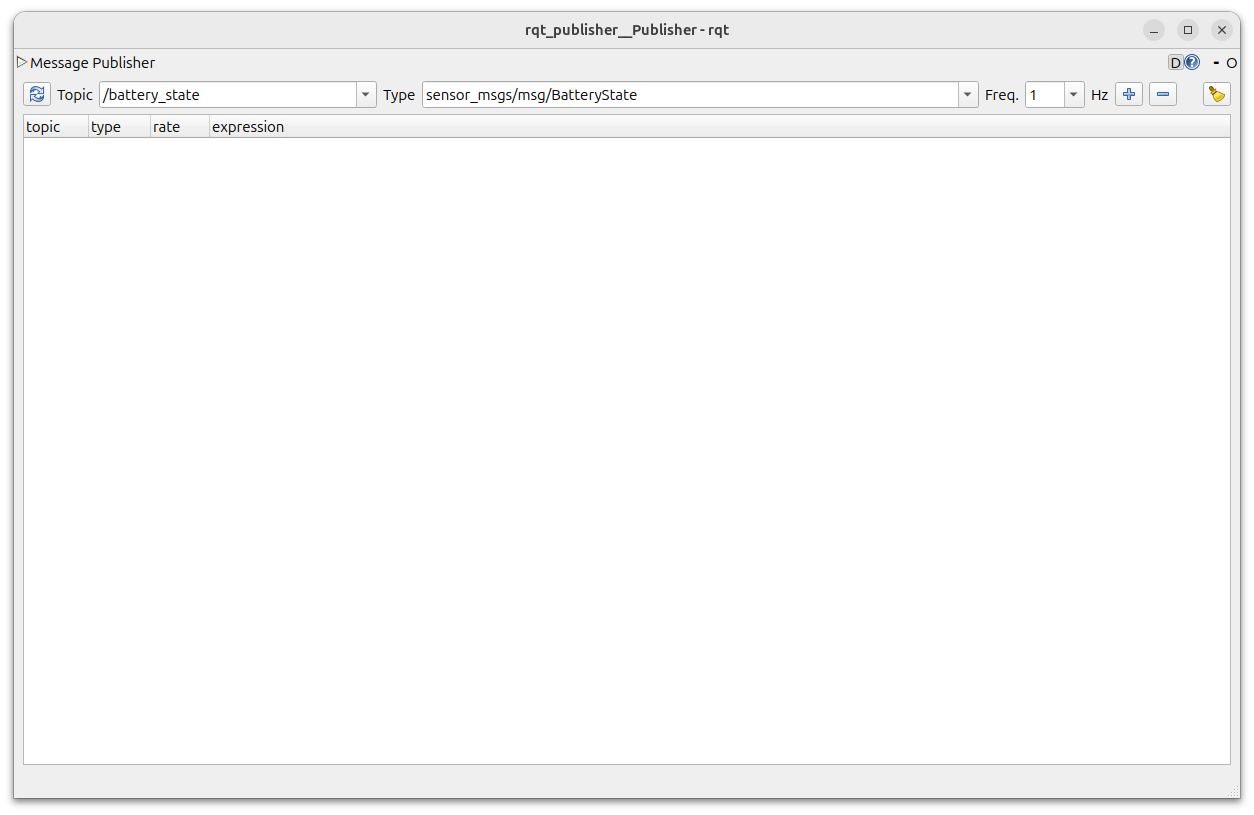

Go back to TERMINAL 3 and enter the following command to launch the RQT Message Publisher node:

TERMINAL 3:
```
ros2 run rqt_publisher rqt_publisher
```
In the "Topic" dropdown menu select /cmd_vel.
Move along to the right and enter a value of 10 in the box next to the "Freq." label.

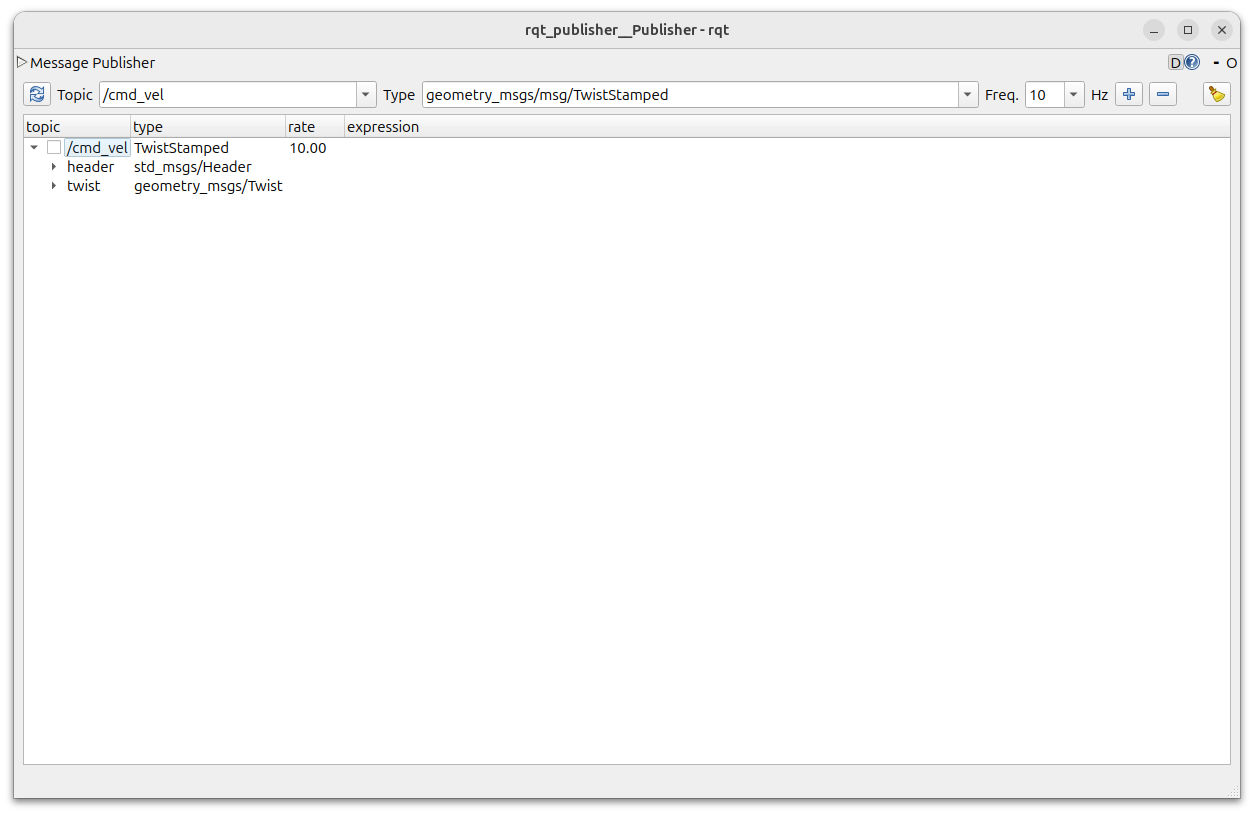

Further to the right, click on the box to add this as a publisher to the main "Publisher Table".
In the Publisher Table, click on the next to /cmd_vel, to expand the item and reveal two further items: header and twist:

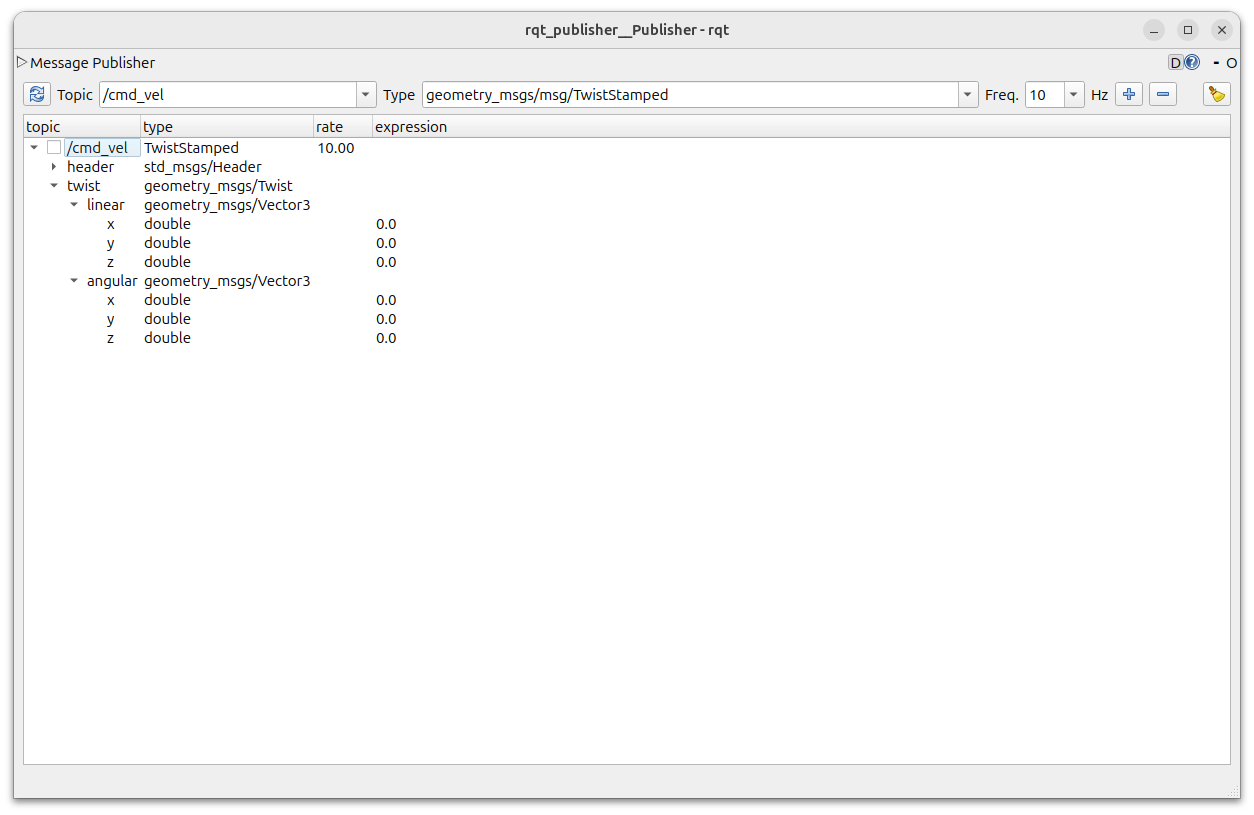

Click on the icon next to twist, and then the subsequent icons next to the linear and angular items that appear below this. Finally, you'll see some values in the "expression" column:

Does this look familiar to the interface definition as we viewed it in the terminal before?
Using what we learnt above about the way the robot can actually move, change one of the six values in the "expression" column that you think might make robot rotate on the spot. Before you do this, it's worth noting the following things:
1. The unit of linear velocity is meters per second (m/s).
2. The unit of angular velocity is radians per second (rad/s).
3. Our Waffle robots can move with a maximum linear velocity of 0.26 m/s and a maximum angular velocity of 1.82 rad/s.
Once you've entered a value, click on the checkbox to the left of /cmd_vel to start publishing these values to the topic. Observe what your robot does!
Set the value back to 0.0 and then hit Enter to make the robot stop moving.
Next, find an alternative velocity value that you can set in order to make the robot move forwards this time. (Don't forget to set the value back to 0.0 to make the robot stop moving again afterwards.)
Finally, enter a combination of velocity values to make the robot move in a circle.
Once you're finished, set all velocities back to 0.0, make sure the robot is no longer moving, and then uncheck the box next to /cmd_vel to stop publishing messages. Click on the button in the top right-hand corner of the Message Publisher window to close it down.

Hopefully you can see now that, in order to make a robot move, it's simply a case of publishing the right ROS Interface Message (TwistStamped) to the right ROS Topic (/cmd_vel). Earlier on in the lab we used the teleop_keyboard node to drive the robot around, a bit like a remote control car. In the background here all that was really happening was that the node was converting our keyboard button presses into velocity commands and publishing these to the /cmd_vel topic. In the previous exercise we looked at this in a bit more detail by actually directly applying values to the right message attributes and using the RQT Message Publisher to publish these for us. As I'm sure you can appreciate though, there's a limit to what we can achieve by working in this way though(circular and straight line motion is about it!)

In reality, robots need to be able to move around complex environments autonomously, which is quite a difficult task, and requires us to build bespoke applications. We can build these applications using Python, and we'll look at the core concepts behind this in the following exercises, starting by building a simple Node that will allow us to make our robot a bit more "autonomous". What we will do here forms the basis of the more complex approaches used by robotics engineers to really bring robots to life!

Exercise 6: Creating a ROS Package¶

As we learnt earlier, all ROS nodes must be contained within packages, so in order for us to create our own node, we first need to create our own package.

In TERMINAL 3 run the following command to navigate to a folder called the "ROS Workspace" using the cd ("change directory") command:
```
cd ~/ros2_ws/src
```
Next run the following command to copy a package template from GitHub into the ROS Workspace folder:
```
git clone https://github.com/tom-howard/ros2_pkg_template.git
```
Now, run a script from within this template, to initialise the package for use:
```
./ros2_pkg_template/init_pkg.sh amr31001_lab1
```
We're going to open this package in a text editor called Visual Studio Code (aka "VS Code") now, so that we can start making changes to it:
```
code ./amr31001_lab1
```

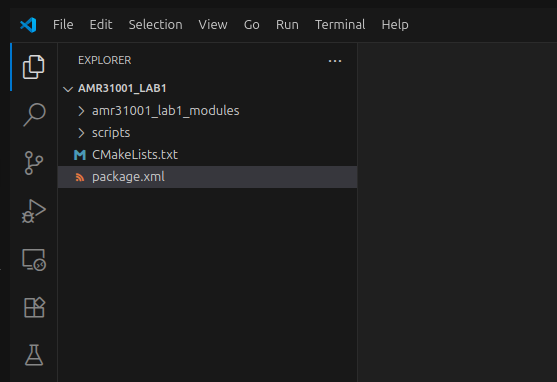

When VS Code opens, you should see a File Explorer on the left-hand side which allows you to access all the files and folders within your package.

Look for a file here called package.xml and click on it. This will open this file in the main VS Code window, to allow you to edit it.
Look for the following lines in the package.xml file:
package.xml
```
<maintainer email="your.name.1@sheffield.ac.uk">Name 1</maintainer>
<maintainer email="your.name.2@sheffield.ac.uk">Name 2</maintainer>
```
Change Name 1 to your name, and then change your.name.1@sheffield.ac.uk to your Sheffield email address! Then, do the same for your other Group member on the line below it. (If you're working in a group of more than 2 people, then you can add additional lines below this for your other group members.)

Post-lab

This is important for the post-lab!

We'll be assessing your work here as part of the post-lab, so it's important that we can identify each member of your group. If any group members aren't listed here, then they won't receive any marks for this!

When entering your names, make sure you provide first names AND surnames for each group member.

Go back to TERMINAL 3 now and run the following three commands:

First:
```
cd ~/ros2_ws
```

Then:

colcon build --symlink-install --packages-select amr31001_lab1

And finally:
```
source ~/.bashrc
```

OK, package creation is now complete, so we're ready to start some Python programming...

Exercise 7: A Python node to make the robot move¶

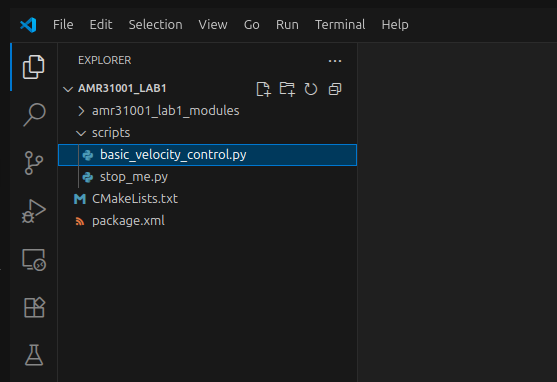

Go back to VS Code now, and (in the File Explorer) look for a folder called scripts. Click on the icon next to this to expand the folder and reveal its content. A file called basic_velocity_control.py should be revealed. Click on this to open it in the main editor window.

This is a (fairly) basic ROS 2 Python Node that will control the velocity of the robot. Let's talk through it:

First, we have some imports:
```
import rclpy # (1)!
from geometry_msgs.msg import TwistStamped # (2)!
import time # (3)!
```
1. rclpy is the ROS client library for Python. We need this so that our Python node can interact with ROS.
2. We know from earlier that in order to make a robot move we need to publish messages to the /cmd_vel topic, and that this topic uses a data structure (or Interface) called geometry_msgs/msg/TwistStamped. This is how we import the interface into our Python node so that we can create velocity commands for our robot (which we'll get to shortly...)
3. We'll use this to control timing in our node.
Click on the icons above to reveal more information about each line of the code.
Next, we declare some variables that we can use and adapt during the main execution of our code:
```
state = 1 # (1)!
vel = TwistStamped() # (2)!
```
1. Inside the while loop (explained shortly) we define two different operational states for the robot, and we can control which one is active by changing this value from 1 to 2 (and visa-versa).
2. We're instantiating a TwistStamped Interface message here and calling it vel. We'll assign velocity values to this in the while loop later on.

  Recall that a TwistStamped message contains six different components that we can assign values to. Which two are relevant to our robot?
Next we configure some important ROS-related things:
```
rclpy.init(args=None) # (1)!
node = rclpy.create_node("basic_velocity_control")  # (2)!
vel_pub = node.create_publisher(TwistStamped, "cmd_vel", 10)  # (3)!
```
1. Initialise rclpy and all the ROS communications that are necessary for our node.
2. Initialise this Python script as an actual ROS node, providing a name for it to be registered on the ROS network with ("basic_velocity_control" in this case).
3. Here we're setting up a publisher to the /cmd_vel topic so that the node can send velocity commands to the robot (using TwistStamped data).
After this, we're defining another variable:
```
timestamp = node.get_clock().now().nanoseconds # (1)!
```
1. What time is it right now? This tells us the current "ROS Time" (in nanoseconds), which will be useful to compare against in the while loop.
Now, we enter into a while loop, which is where our code will spend the majority of its time once it's running:
```
while rclpy.ok(): # (1)!
    time_now = node.get_clock().now().nanoseconds # (2)!
    elapsed_time = (time_now - timestamp) * 1e-9 # (3)!

    ...
```
1. This returns True as long as the node is alive, so all the code inside the while loop will continue to execute as long as this is the case.
2. What time is it now? Check the time at the start of each iteration of the while loop, and assign this to a variable called time_now.
3. Determine how much time has elapsed (in seconds) since the timestamp was last updated.
Everything that's indented below the while rclpy.ok(): line will continue to be executed over and over again until we ask our node to stop. The code will execute line-by-line from top-to-bottom within this while loop, and will then go back to the top again and repeat it all over and over and over again! Each repeat is called an "iteration".
1. An if statement now controls the state of operation for our robot.
  1. In state 1 we set velocities that will make the robot move forwards (linear X velocity only) for a certain amount of time and then stop. How long will the robot move forwards for, and at what velocity?
```
if state == 1:
    if elapsed_time < 2: # (1)!
        vel.twist.linear.x = 0.05 # (2)!
        vel.twist.angular.z = 0.0
    else: # (3)!
        vel.twist.linear.x = 0.0 # (4)!
        vel.twist.angular.z = 0.0
        state = 2 # (5)!
        timestamp = node.get_clock().now().nanoseconds # (6)!
```
    1. If the elapsed time is less than 2 seconds...
    2. Set a linear velocity so that the robot will move forwards.
    3. If the elapsed time has exceeded 2 seconds...
    4. Set our robot's velocities to 0.0 to make it stop.
    5. In the next loop iteration, go into state 2 instead.
    6. Reset the timestamp to start counting up again.
  2. In state 2 we set velocities that will make the robot turn on the spot (angular Z velocity only) for a certain amount of time and then stop. How long will it do this for, and at what velocity?
```
elif state == 2:
    if elapsed_time < 4: # (1)!
        vel.twist.linear.x = 0.0
        vel.twist.angular.z = 0.2 # (2)!
    else: # (3)!
        vel.twist.linear.x = 0.0 # (4)!
        vel.twist.angular.z = 0.0
        state = 1 # (5)!
        timestamp = node.get_clock().now().nanoseconds # (6)!
```
    1. While the elapsed time is less than 4 seconds...
    2. Apply an angular velocity to the robot to make it turn on the spot.
    3. Once the elapsed time has exceeded 4 seconds...
    4. Set the robot's velocities back to 0.0 to make it stop.
    5. In the next loop iteration, go back into state 1 again (moving forwards).
    6. Reset the timestamp to start counting up once more.
2. And after the if statement:
```
node.get_logger().info( # (1)!
    f"\n[State = {state}] Publishing velocities:\n"
    f"  - linear.x: {vel.twist.linear.x:.2f} [m/s]\n"
    f"  - angular.z: {vel.twist.angular.z:.2f} [rad/s].",
    throttle_duration_sec=1,
)
vel_pub.publish(vel) # (2)!
```
  1. This (and the following 5 lines) will print a message to the terminal, to provide us with regular updates on what state the node is currently in and what velocities have been set (in the if statement above).
  2. This line is crucial: this operation actual publishes the velocity commands to the /cmd_vel topic, to make the robot actual act on our instructions.

    Regardless of what happens in the if states above, we always publish a velocity command to the /cmd_vel topic here (every loop iteration).
Go back to TERMINAL 3 now, run the code and see what happens. Make sure the robot is on the floor and has enough room to roam around before you do this!

TERMINAL 3:
```
ros2 run amr31001_lab1 basic_velocity_control.py
```
Enter Ctrl+C in TERMINAL 3 to stop the node from running once you've seen enough.
Warning

The robot will continue to move even after you've stopped the node! Run the following command to stop it:
```
ros2 run amr31001_lab1 stop_me.py
```
Your Task:

The aim here is to make the robot follow a square motion path of dimensions 0.5m x 0.5m. As it is though, the basic_velocity_control.py node doesn't actually do this yet, and you need to fix it!

Edit the code so that the robot actually follows a 0.5m x 0.5m square motion path!

Post-lab

As discussed above, your completion of this exercise will be assessed as part of the post-lab!

Exercise 8 (Advanced): Alternative Motion Paths¶

If you have time, have a go at this now...

How could you adapt the code further to achieve some more interesting motion profiles?

First, go back to TERMINAL 3 and make sure you're in the right file system location:
```
cd ~/ros2_ws/src/amr31001_lab1/scripts
```
Then, make a copy of the basic_velocity_control.py code using the cp command (copy):
```
cp basic_velocity_control.py alt_velocity_control.py
```
Which will create a copy called alt_velocity_control.py
Use the following command to open up a text file in VS Code:
```
code ../CMakeLists.txt
```

In this file, locate the lines (near the bottom of the file) that read:

# Install Python executables
install(PROGRAMS
  scripts/basic_velocity_control.py
  scripts/stop_me.py
  DESTINATION lib/${PROJECT_NAME}
)

Insert a new line below the one that reads scripts/basic_velocity_control.py, so that it now looks like this:

# Install Python executables
install(PROGRAMS
  scripts/basic_velocity_control.py
  scripts/alt_velocity_control.py
  scripts/stop_me.py
  DESTINATION lib/${PROJECT_NAME}
)

You've just added alt_velocity_control.py as a new node within your package.

Save the file and close it.

Go back to TERMINAL 3 and run the following 3 commands again, in order:

First:
```
cd ~/ros2_ws
```

Then:

colcon build --symlink-install --packages-select amr31001_lab1

And finally:
```
source ~/.bashrc
```

Go back to VS Code and find your new alt_velocity_control.py file. Click on it to open it in the editor.
NOW see if you can edit this to achieve either of the more complex motion profiles illustrated below.
1. Profile (a): The robot needs to follow a figure-of-eight shaped path, where a linear and angular velocity command are set simultaneously to generate circular motion. Velocities will need to be defined in order to achieve a path diameter of 1m for each of the two loops. Having set the velocities appropriately, you'll then need to work out how long it would take the robot to complete each loop, so that you can determine when the robot should have got back to its starting point. At this point you'll need to change the turn direction, so that the robot switches from anti-clockwise to clockwise turning.
2. Profile (b): The robot needs to start and end in the same position, but move through intermediate points 1-7, in sequence, to generate the stacked square profile as shown. Each of the two squares must be 1m x 1m in size, so you'll need to find the right velocity and duration pairs for moving forward and turning. You'll also need to change the turn direction once the robot reaches Point 3, and then again at Point 7!
To run the file and test it out, you'll need to use ros2 run .... How would you format this command (recall this)?¹

Whenever you need to stop the node, enter Ctrl+C in the terminal.
Remember

The robot will continue to move even after you've stopped the node! Run the following command to stop it whenever you need to:
```
ros2 run amr31001_lab1 stop_me.py
```

Wrapping Up¶

Before you leave, please shut down your robot! Enter the following command in TERMINAL 3 to do so:

TERMINAL 3:

waffle X off

... again, replacing X with the number of the robot that you have been working with today.

You'll need to enter y and then hit Enter to confirm this.

Please then shut down the laptop, which you can do by clicking the battery icon in the top right of the desktop, clicking the Power icon (illustrated below) and then selecting "Power Off..." in the menu.

AMR31001 Lab 1 Complete!
See you in the new year for Lab 2!

ros2 run amr31001_lab1 alt_velocity_control.py ↩
