Lab 2: Feedback Control

Introduction¶

In Lab 1 we explored how ROS works and how to bring a robot to life. Let's quickly recap the key points:

ROS Nodes

Are executable programs (Python, C++ scripts) that perform specific robot tasks and operations.
Typically, there'll be many ROS Nodes running on a robot simultaneously in order to make it work.
We can create our own Nodes on top of what's already running, to add extra functionality.
You may recall that we created our own ROS Node in Python, to make our TurtleBot3 Waffle follow a square motion path.

Topics and Messages

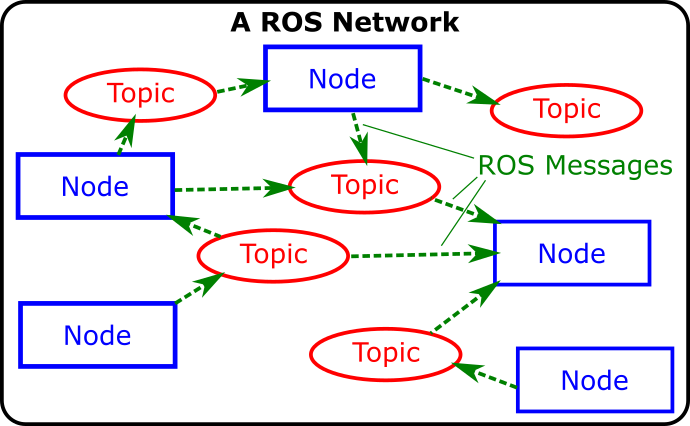

All the ROS Nodes running on a network can communicate and pass data between one another using a Publisher/Subscriber-based Communication Principle.
ROS Topics are key to this - they are essentially the communication channels (or the plumbing) on which all data is passed around between the nodes.
Different topics communicate different types of information.

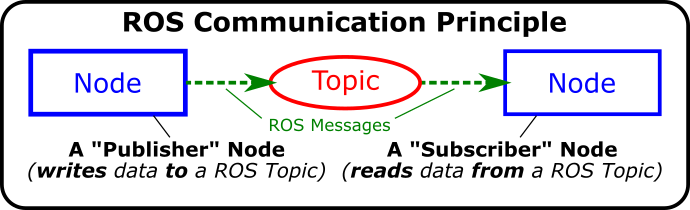

Any Node can publish (write) and/or subscribe to (read) any ROS Topic in order to pass information around or make things happen.

One of the key ROS Topics that we worked with last time was /cmd_vel, which is a topic that communicates velocity commands to make a robot move. You may recall that to make our TurtleBot3 Waffle move, we publish TwistStamped Interface Messages to the /cmd_vel topic. Interfaces messages are structured data types defined in ROS, and we will remind ourselves about the structure of the TwistStamped data type shortly...

Open-Loop Control

We used a time-based method to control the motion of our robot in order to get it to generate a square motion path. This type of control is open-loop: we hoped that the robot had moved (or turned) by the amount that was required, but had no feedback to tell us whether this had actually been achieved.

In this lab we'll look at how this can be improved, making use of some of our robot's on-board sensors to tell us where the robot is or what it can see in its environment, in order to complete a task more reliably and be able to better adapt to changes and uncertainty in the environment.

Aims¶

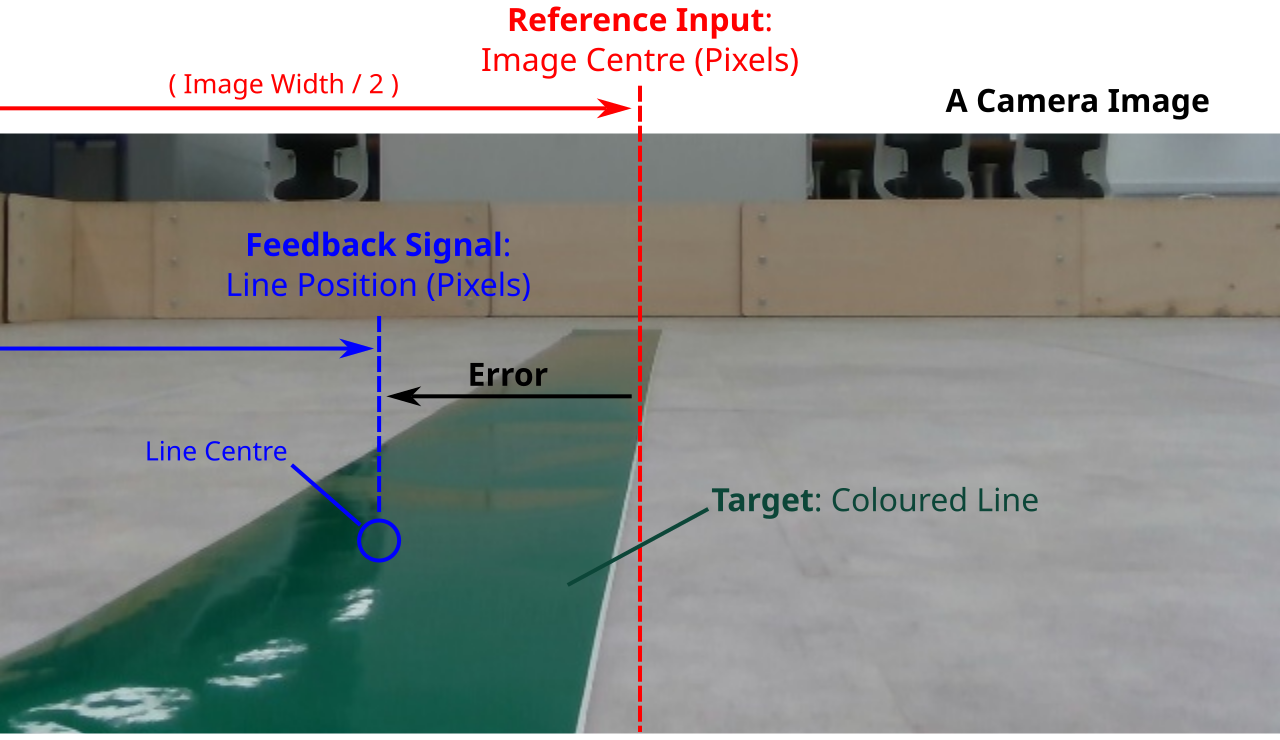

In this lab, we'll build some ROS Nodes (in Python) that incorporate data from some of our robot's sensors. This sensor data is published to specific topics on the ROS Network, and we can build ROS Nodes to subscribe to these. We'll see how the data from these sensors can be used as feedback to inform decision-making, thus allowing us to implement some different forms of closed-loop control, and make our robot more autonomous.

Intended Learning Outcomes¶

By the end of this session you will be able to:

Interpret the data from a ROS Robot's Odometry System and understand what this tells you about a Robot's position and orientation within its environment.
Use feedback from a robot's odometry system to control its position in an environment.
Use data from a Robot's LiDAR sensor to make a robot follow a wall.

The Lab¶

Assessment Info

This lab is summatively assessed.

There's a post-lab quiz that you'll need to complete after this lab session has taken place, which will be released on Blackboard.
You'll also be marked on the work that you do in the lab for Exercise X (TODO).

Getting Started¶

Creating a ROS Package¶

We'll need a ROS package to work with for this lab session. We've created a template for you, which contains all the resources that you'll need for today. Download and install this as follows.

Open up a terminal instance on the laptop, either by using the Ctrl+Alt+T keyboard shortcut, or by clicking the Terminal App icon in the favourites bar on the left-hand side of the desktop:

We'll call this TERMINAL 1.

In TERMINAL 1, run the following commands in order:

Tip

To paste the following commands into the terminal use Ctrl+Shift+V

TERMINAL 1:

cd ~/ros2_ws/src/

git clone https://github.com/tom-howard/amr31001_lab2.git

cd ~/ros2_ws && \
  colcon build --symlink-install \
  --packages-select amr31001_lab2 && \
  source ~/.bashrc

Next, open the package in VS Code:
```
code ./src/amr31001_lab2
```

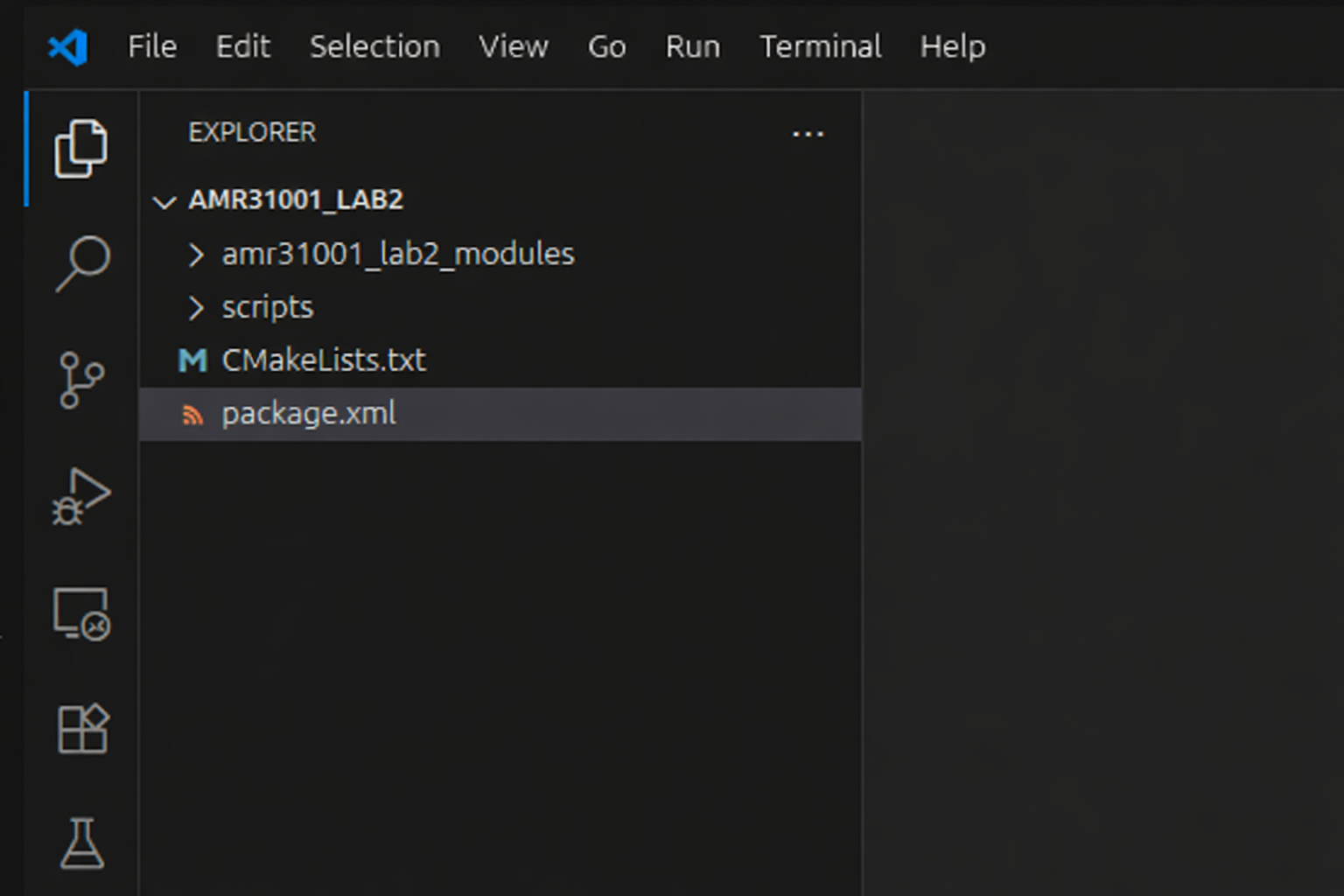

When VS Code opens, navigate to the File Explorer:

... find a file here called package.xml and click on it.
Look for the following lines in the package.xml file:
package.xml
```
<maintainer email="name1@sheffield.ac.uk">Name 1</maintainer>
<maintainer email="name2@sheffield.ac.uk">Name 2</maintainer>
```
Change Name 1 to your name, and then change name1@sheffield.ac.uk to your Sheffield email address! Then, do the same for your other Group member on the line below it. (If you're working in a group of more than 2 people, then you can add additional lines below this for your other group members.)

Post-lab

This is important for the post-lab!

Some of the work that you do in this lab will be assed as part of the post-lab, so it's important that we can identify each member of your group. If any group members aren't listed here, then they won't receive any marks!

When entering your names, make sure you provide first names AND surnames for each group member.
Save the changes that you have just made to your package.xml file.

Launching ROS¶

Much the same as last time, you'll now need to get ROS up and running on your robot.

First, identify the robot that you have been provided with. Each of our robots are uniquely named: dia-waffleX, where X is the 'Robot Number' (a number between 1 and 50). Check the label printed on top of the robot to find out which one you have!
In TERMINAL 1 type the following command to pair the laptop and robot, so that they can work together:

TERMINAL 1:
```
waffle X pair
```
... replacing X with the number of the robot that you have been provided with.
Enter the password for the robot when requested (we'll tell you what this is in the lab).

You may see a message like this early on in the pairing process:

If so, just type yes and then hit Enter to confirm that you want to continue.
Once the pairing process is finished you should see a message saying pairing complete, displayed in blue in the terminal.
Then, in the same terminal (TERMINAL 1), enter the following command:

TERMINAL 1:
```
waffle X term
```
(again, replacing X with the number of your robot).

Any text that was in the terminal should now disappear, and a green banner should appear across the bottom of the terminal window:

This is a terminal instance running on the robot, and any commands that you enter here will be executed on the robot (not the laptop!)
Now, launch ROS on the robot by entering the following command:

TERMINAL 1:
```
ros2 launch tuos_tb3_tools ros.launch.py
```
Tip

To paste text into a Linux terminal you'll need to use the Control + Shift + V keyboard keys: Ctrl+Shift+V

If all is well then the robot will play a nice "do-re-me" sound and a message like this should appear (amongst all the other text):
```
[tb3_status.py-#] ######################################
[tb3_status.py-#] ### dia-waffleX is up and running! ###
[tb3_status.py-#] ######################################
```
ROS is now up and running on the robot, and we're ready to go!
Next, connect the laptop to the ROS network that we've just established on the robot. The Robot and Laptop communicate with one another via the University Wireless network, but there's one more step required to link them together.

Open up a new terminal instance on the laptop (either by using the Ctrl+Alt+T keyboard shortcut, or by clicking the Terminal App icon) and enter the following command:

TERMINAL 2:
```
ros2 run rmw_zenoh_cpp rmw_zenohd
```
Leave TERMINAL 1 and TERMINAL 2 running in the background at all times while working with your robot in the lab today.

Odometry¶

First, let's look at our robot's odometry system, and what this is useful for.

Odometry is the use of data from motion sensors to estimate change in position over time. It is used in robotics by some legged or wheeled robots to estimate their position relative to a starting location. ¹

Our robot can therefore keep track of its position (and orientation) as it moves around. It does this using data from two sources:

Wheel encoders: Our robot has two wheels, each is equipped with an encoder that measures the number of rotations that the wheel makes.
An Inertial Measurement Unit (IMU): Using accelerometers, gyroscopes and compasses, the IMU can monitor the linear and angular velocity of the robot, and which direction it is heading, at all times.

This data is published to a ROS Topic called /odom.

Exercise 1: Exploring Odometry Data¶

In the previous lab we used some ROS commands to identify and interrogate active topics on the ROS network, let's give that another go now, but on the /odom topic this time.

Open up a new terminal instance on the laptop (by pressing Ctrl+Alt+T, or clicking the Terminal App desktop icon, as you did before). We’ll call this one TERMINAL 3.
As you may recall from last time, we can use the ros2 topic command to list all the topics that are currently active on the network. Enter the following in TERMINAL 3:

TERMINAL 3:
```
ros2 topic list
```
A large list of items should appear on the screen. Can you spot the /odom topic?
Let's find out more about this using the ros2 topic info command.

TERMINAL 3:
```
ros2 topic info /odom
```
This should provide the following output:
```
Type: nav_msgs/msg/Odometry
Publisher count: 1
Subscription count: 0
```
Post-lab Quiz

What does all this mean? We discussed this last time (in relation to the /cmd_vel topic), and you may want to have a look back at this to refresh your memory!

Based on the above, we know that the /odom topic uses a nav_msgs/msg/Odometry data structure (or "interface").

Interfaces (revisited)

Recall from Lab 1 that data structures in ROS 2 are called Interfaces.

From the output above, Type refers to the type of data structure (i.e. the type of interface). The Type definition always has three parts to it, in this case: nav_msgs, msg and Odometry:
1. nav_msgs is the name of the ROS package that this interface (data structure) belongs to
2. msg tells us that it's a topic message interface (rather than another interface type, of which there are others, but we don't need to worry about them here)
3. Odometry is the name of the message interface.

We can use the ros2 interface command to find out more about this:

TERMINAL 3:

ros2 interface show nav_msgs/msg/Odometry

You'll see a lot of information there, but try to find the line that reads Pose pose:

Pose pose
        Point position
                float64 x
                float64 y
                float64 z
        Quaternion orientation
                float64 x 0
                float64 y 0
                float64 z 0
                float64 w 1

Here's where we'll find information about the robot's position and orientation (aka "Pose") in the environment. Let's have a look at this data in real time...

We can look at the live data being streamed across the /odom topic, using the ros2 topic echo command. We know that the data type is called nav_msgs/msg/Odometry, and nested within this is the pose attribute that we are interested in, so:

TERMINAL 3:
```
ros2 topic echo /odom --field pose.pose
```
What we're presented with now is live Odometry data from the robot.

Let's drive the robot around a bit and observe how our robot's pose changes as we do so.
Open up a new terminal instance by pressing Ctrl+Alt+T, or clicking the Terminal App desktop icon, as you did before. We'll call this one TERMINAL 4:

TERMINAL 4:
```
ros2 run turtlebot3_teleop teleop_keyboard
```
Follow the instructions provided in the terminal to drive the robot around:

Reminder

As you're doing this, look at how the position and orientation data is changing in TERMINAL 3, in real-time!
Post-lab Quiz

Which position and orientation values change (by a significant amount) when:
1. The robot turns on the spot (i.e. only an angular velocity is applied)?
2. The robot moves forwards (i.e. only a linear velocity is applied)?
3. The robot moves in a circle (i.e. both a linear and angular velocity are applied simultaneously)?
Make a note of the answers to these questions, as they may feature in the post-lab quiz!
When you've seen enough enter Ctrl+C in TERMINAL 4 to stop the teleop_keyboard node. Then, enter Ctrl+C in TERMINAL 3 as well, which will stop the live stream of Odometery messages from being displayed.

Summary¶

Pose is a combination of a robot's position and orientation in its environment.

Position tells us the location (in meters) of the robot in its environment. Wherever the robot was when it was turned on is the reference point, and so the distance values that we observed in the exercise above were all quoted relative to this initial position.

You should have noticed that (as the robot moved around) the x and y terms changed, but the z term should have remained at zero. This is because the X-Y plane is the floor, and any change in z position would mean that the robot was floating or flying above the floor!

Orientation tells us where the robot is pointing in its environment, expressed in units of Quaternions; a four-term orientation system. You should have noticed some of these values changing too, but it may not have been immediately obvious what the values really meant! For the further exercises in this lab we'll convert this to Euler angles (in degrees/radians) for you, to make the data a bit easier to understand.

Ultimately though, our robots position can change in both the X and Y axes (i.e. the plane of the floor), while its orientation can only change about the Z axis (i.e. it can only "yaw"):

Exercise 2: Odometry-based Navigation¶

Now that we know about the odometry system and what it tells us, let's see how this could be used as a feedback signal to inform robot navigation. You may recall that last time you created a ROS Node to make your robot to follow a square motion path on the floor. This was time-based though: for a given speed of motion (turning or moving forwards) how long would it take for the robot to move by a required distance? Having determined this, we then used timers to control the execution of two different motion states: moving forwards and turning on the spot, in order to generate the square motion path (approximately).

In theory though, we can do all this much more effectively with odometry data instead, so let's have a go at that now...

Head back to VS Code, which should still be open from earlier.
In the File Explorer on the left-hand side find a folder called scripts, and click on the ex2.py file in here, to display it in the editor.
Have a look through the code and see if you can work out what's going on. There are a few things to be aware of:
1. Motion control is handled by an external Python class called Motion, which is imported on line 7 (along with another class called Pose which we'll talk about shortly):
```
from amr31001_lab2_modules.tb3_tools import Motion, Pose
```
  The Motion class is instantiated on line 15:
```
self.motion = Motion(self) # (1)!
```
  1. Most of the code in the ex2.py file is contained within a Python class called Square. See line 10:
```
class Square(Node):
    ...
```
    self allows our class to refer to itself!

    self.motion for example allows us to access the motion attribute elsewhere within the class (as long as we refer to it as self.motion).

    See this in action below...
  A class method called move_square() contains the main part of the code, and it's here that we call the motion attribute to make the robot move, e.g.:
  1. To make the robot move at a linear velocity of x (m/s) and/or an angular velocity of y (rad/s):
```
self.motion.move_at_velocity(
    linear = x, angular = y
)
```
  2. To make the robot stop moving:
```
self.motion.stop()
```
2. Obtaining our robot's Odometry data was discussed in the previous exercise, where we learnt that can be done by subscribing to the /odom topic, which provides us with this data in a nav_msgs/msg/Odometry-type format. This is quite a complex data structure, so to make life easier during this lab, we've done all the hard work for you, inside another class called Pose (also imported earlier). This class is instantiated on line 16:
```
self.pose = Pose(self)
```
  We can then use this to access the robot's odometry data, by calling the appropriate attribute whenever we need it:
  1. self.pose.posx to obtain the robot's current position (in meters) in the X axis.
  2. self.pose.posy to obtain the robot's current position (in meters) in the Y axis.
  3. self.pose.yaw to obtain the robot's current orientation (in degrees) about the Z axis.
Run the code in TERMINAL 3 and observe what happens:

TERMINAL 3:
```
ros2 run amr31001_lab2 ex2.py
```
The robot should start turning on the spot, and you should see some interesting information being printed to the terminal. After it has turned by 45° the robot should stop.
Stop the Node by entering Ctrl+C in TERMINAL 3 and then run it again if you missed what happened the first time!
What you need to do:
1. The move_square() class method is called over and over again at controlled rate. This was established in the __init__() class method:
```
self.create_timer(
    timer_period_sec=0.05, # (1)!
    callback=self.move_square, # (2)!
)
```
  1. The rate at which to execute a "callback function". Note: defined in terms of period (in seconds), not frequency (in Hz).
  2. The callback function to execute at the specified rate, i.e. move_square().
2. The move_square() class method is therefore essentially the main part of our code: a series of operations that will be called over and over again at a specified rate.

  It's this part of the code that you will need to modify!

  Within this there is an if statement that controls whether the robot should be turning or moving forwards:
```
if self.turn:
    # Turning State
    ...
else:
    # Moving Forwards
    ...
```
  ... where self.turn is a boolean whose value can either be True or False.
3. Within this, look at what happens in the Turning State. Consider how the robot's yaw angle is being monitored and updated as the robot turns. Then, look at how the turn angle is being controlled. See if you can adapt this to make sure the robot turns by 90°.
4. Ultimately, after the robot has turned by the desired angle it needs to move forwards by 0.5m, in order to achieve a 0.5x0.5m square motion path.

  Moving forwards is handled in the Moving Forwards state.

  See if you can adapt the code within this block to make the robot move forwards by the required amount (0.5 meters) in between each turn.

  Hint

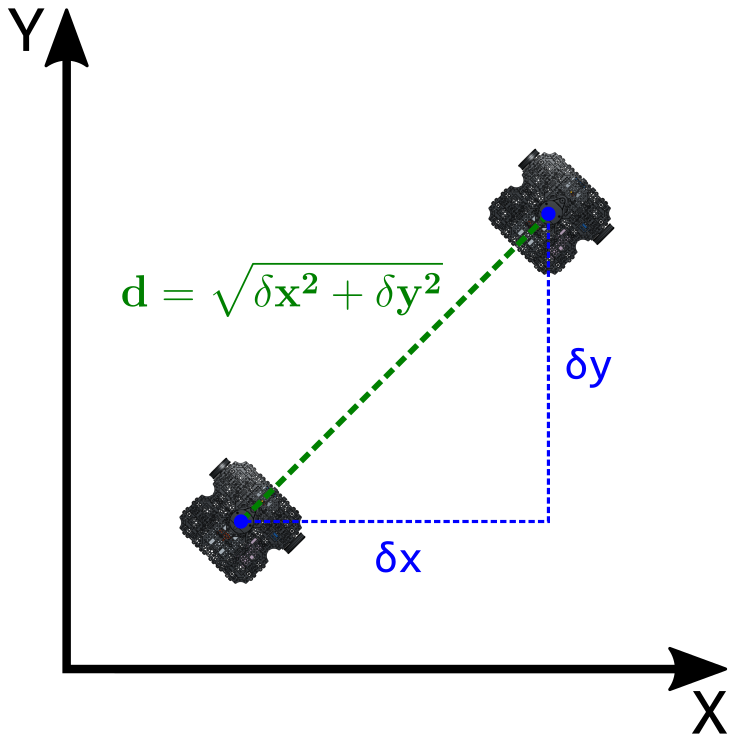

  Consider how the turn angle is monitored and updated whist turning (current_yaw), and take a similar approach with the linear displacement (current_distance). Bear in mind that you'll need to consider the euclidean distance, which you'll need to calculate based on the robot's position in both the x and y axis.
5. Make sure that you've saved any changes to the code (in VS Code) before trying to test it out on the robot!

  Do this by using the Ctrl+S keyboard shortcut, or going to File > Save from the menu at the top of the screen.
6. Once you've saved it, you can re-run the code at any time by using the same ros2 run command as before:

  TERMINAL 3:
```
ros2 run amr31001_lab2 ex2.py
```
  ... and you can stop it at any time by entering Ctrl+C in the terminal.
  Python Tips

  You'll need to do a bit of maths here (see the "Hint" above). Here's how to implement a couple of mathematical functions in Python:
  1. To the power of X:

    Use ** to raise a number to the power of another number (i.e. \(2^{3}\)):
    >>> 2**3 8
    Or, use the pow() method:
    >>> pow(2, 3) 8
  2. Square Root:

    To calculate the square root of a number (i.e. \(\sqrt{4}\)):
    >>> sqrt(4) 2.0

The LiDAR Sensor¶

As you'll know, the black spinning device on the top of your robot is a LiDAR Sensor. As discussed previously, this sensor uses laser pulses to measure the distance to nearby objects. The sensor spins continuously so that it can fire these laser pulses through a full 360° arc, and generate a full 2-dimensional map of the robot's surroundings.

This data is published onto the ROS network to a topic called /scan. Use the same methods that you used in Exercise 1 to find out what data type ("interface") this topic uses.

Post-lab Quiz

Make a note of this, there'll be a post-lab quiz question on it!

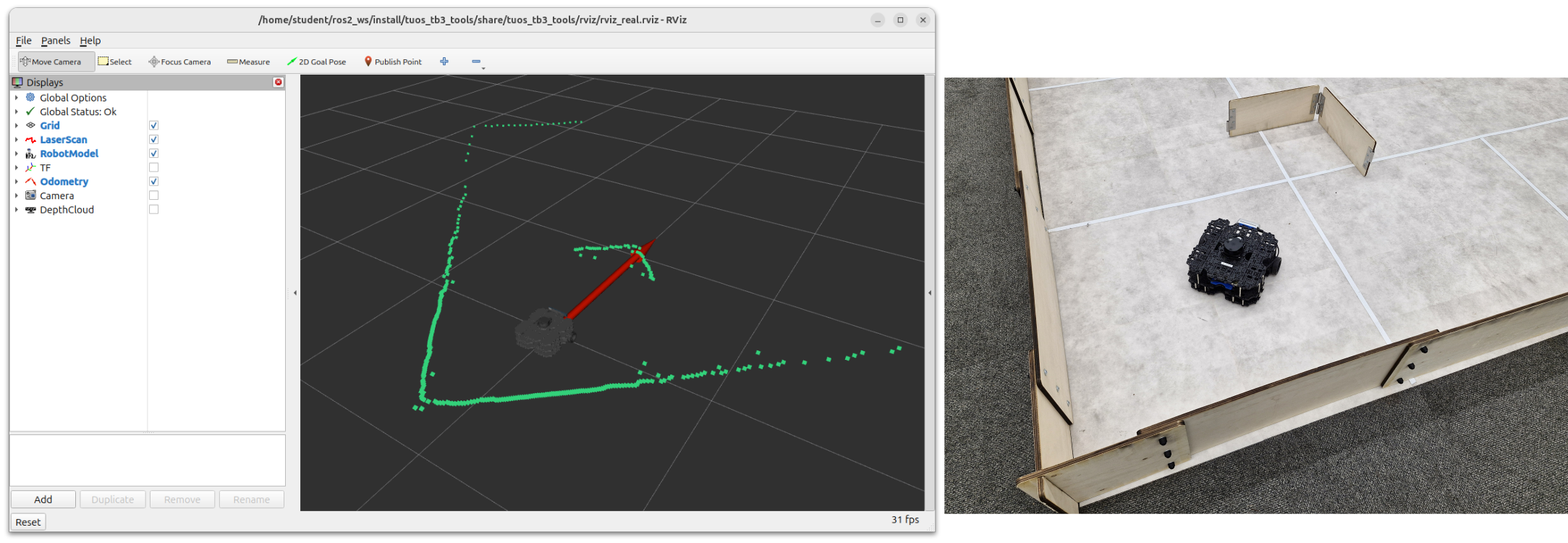

Launch RViz, so that we can see the data coming from this sensor in real-time:

TERMINAL 3:

ros2 launch tuos_tb3_tools rviz.launch.py environment:=real

The green dots illustrate the LiDAR data. Hold your hand out to the robot and see if you can see it being detected by the sensor... a cluster of green dots should form on the screen to indicate where your hand is located in relation to the robot. Move your hand around and watch the cluster of dots move accordingly. Move your hand closer and farther away from the robot and observe how the dots also move towards or away from the robot on the screen.

This data is really useful and (as we observed during the previous lab session) it allows us to build up 2-dimensional maps of an environment with considerable accuracy. This is, of course, a very valuable skill for a robot to have if we want it to be able to navigate autonomously, and we'll explore this further later on. For now though, we'll look at how we can use the LiDAR data ourselves to build Nodes that make the robot detect and follow walls!

Once you're done, close down RViz by hitting Ctrl+C in TERMINAL 3.

Exercise 3: Wall following¶

In VS Code, click on the ex3.py file in the File Explorer to display it in the editor.
Have a look through the code and see if you can work out what's going on. Here's a few points to start with:
1. Velocity control is handled in the same way as in the previous exercise:
  1. To make the robot move at a linear velocity of x (m/s) and/or an angular velocity of y (rad/s):
```
self.motion.move_at_velocity(
    linear = x, angular = y
)
```
  2. To make the robot stop moving:
```
self.motion.stop()
```
2. The data from the LiDAR sensor has been preprocessed and encapsulated in a separate class (much like Pose in the previous exercise). This one is called Lidar, which is instantiated on line 15:
```
self.lidar = Lidar(self)
```

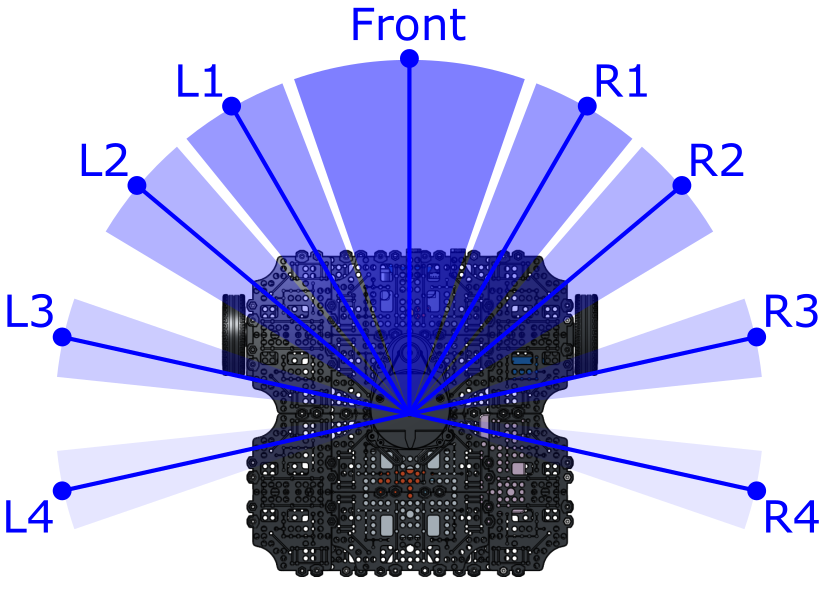

  This class splits up data from the LiDAR sensor into a number of different segments to focus on a number of distinct zones around the robot's body (to make the data a bit easier to deal with). For each of the segments (as shown in the figure below) a single distance value can be obtained, which represents the average distance to any object(s) within that particular angular zone:

  In the code, we can obtain the distance measurement (in meters) from each of the above zones as follows:
  1. self.lidar.distance.front to obtain the average distance to any object(s) in front of the robot (within the frontal zone).
  2. self.lidar.distance.l1 to obtain the average distance to any object(s) located within LiDAR zone L1.
  3. self.lidar.distance.r1 to obtain the average distance to any object(s) located within LiDAR zone R1.
    and so on...
3. The code template has been developed to detect a wall on the robot's left-hand side.
  1. We use distance measurements from LiDAR zones L3 and L4 to determine the alignment of the robot to a left-hand wall.
  2. This is determined by calculating the difference between the distance measurements reported from these two zones:
```
wall_slope = self.lidar.distance.l3 - self.lidar.distance.l4
```
  3. This is a spatial difference between LiDAR beams l3 and l4, and can be used as a simple measure of local wall slope or relative offset between the robot and the wall.

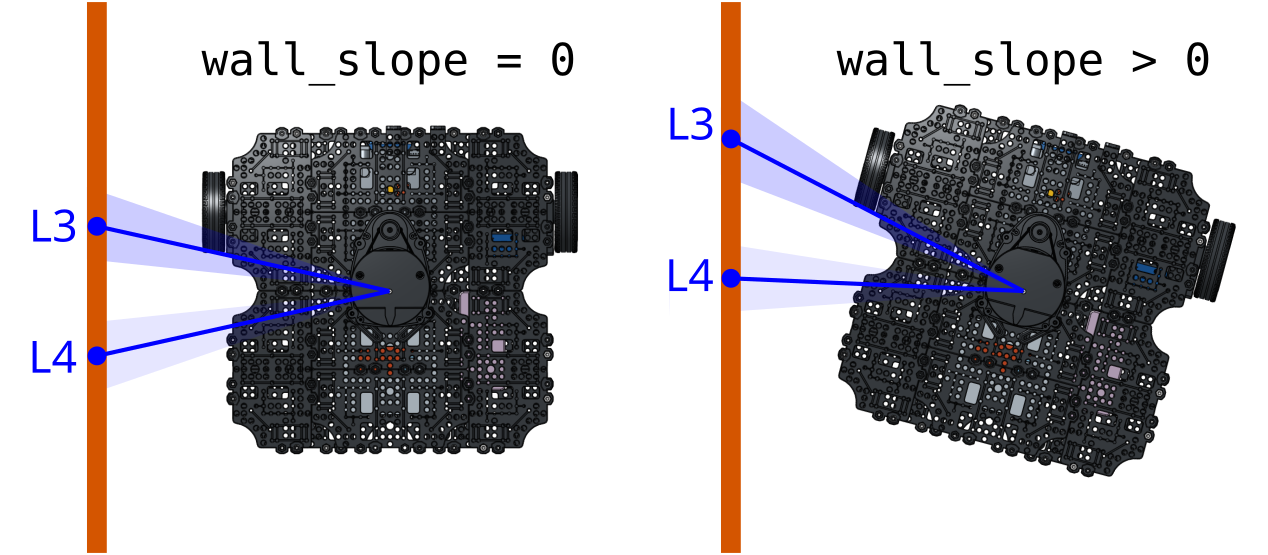

    If this value is close to zero, then the robot and the wall are well aligned. If not, then the robot is at an angle to the wall, and it needs to adjust its angular velocity in order to correct for this:
Run the node as it is, from TERMINAL 3:

TERMINAL 3:
```
ros2 run amr31001_lab2 ex3.py
```
When you do this, you'll notice that the robot doesn't move at all (yet!), but the following data appears in the terminal:
1. The distance measurements from each of the LiDAR zones.
2. The current value of the wall_slope parameter, i.e. how well aligned the robot currently is to a wall on its left-hand side.
3. The decision that has been made by the if statement on the appropriate action that should be taken, given the current value of wall_slope.
Now look at the code. The "main" part of the code is once again controlled by a timer.
Post-lab Quiz
- What is the name of the main control method in ex3.py?
- At what rate (in Hz) will this control method be executed?
Adapting the code:
1. First, modify the wall_slope calculation so that the robot observes a wall on its right-hand side NOT its left.
2. Next, place the robot on the floor with a wall on its right-hand side
3. Manually vary the alignment of the robot and the wall and observe how the information that is being printed to the terminal changes as you do so.

  Question

  The node will tell you if it thinks the robot needs to turn right or left in order to improve its current alignment with the wall. Is it making the correct decision?
4. Currently, all velocity parameters inside the follow_wall() method are set to zero.
  - You'll need to set a constant linear velocity, so that the robot is always moving forwards. Set an appropriate value for this now, by editing the line that currently reads:
```
lin_vel = 0.0
```
  - The angular velocity of the robot will need to be adjusted conditionally, in order to ensure that the value of wall_slope is kept as low as possible at all times (i.e. the robot is kept in alignment with the wall).
  Adjust the value of ang_vel in each of the if statement blocks so that this is achieved under each of the three possible scenarios.

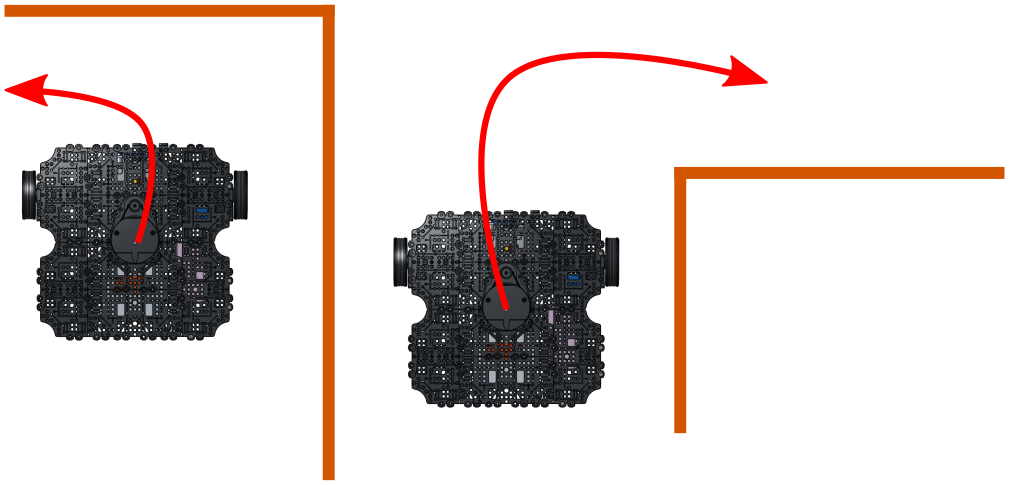

5. Hopefully, by following the steps above, you will get to the point where you can make the robot follow a right-hand wall reasonably well, as long as the wall remains reasonably straight! Consider what would happen however if the robot were faced with either of the following situations:

  You may have already observed this during your testing... how could you adapt the code so that such situations can be achieved?
  Hints
  1. You may need to consider the distance measurements from some other LiDAR zones!
  2. The ex3.py template that was provided to you uses an if statement with three different cases:
    if ...: elif ...: else:
    You may need to add in some further cases to this to accommodate the additional situations discussed above, e.g.:
    if ...: elif ...: elif ...: elif ...: else:

We've played around with the data from both the LiDAR sensor and the robot's Odometry System now, so hopefully you now understand what these two systems can tell us about our robot and its environment, and how this information is very valuable for robotic applications.

To illustrate this further, we'll now have a look at two extremely useful tools that are built into ROS, and that use the data from these two sensors alone to achieve powerful results!

Simultaneous Localisation and Mapping (SLAM)

As you now know, the LiDAR sensor gives us a full 360° view of our robot's environment. As the robot moves around it starts to observe different features in the environment, or perhaps the same features that it has already seen, but at a different perspective. Using the LiDAR data in combination with our robots Pose and Velocity (as provided by the Odometry System), we can actually build up a comprehensive 2-dimensional map of an environment and keep track of where our robot is actually located within that map, at the same time. This is a process called SLAM, and you may remember that we had a go at this in the previous lab session.

Navigation

Having built a complete map (using SLAM) our robot then knows exactly what its environment looks like, and it can then use the map to work out how to get from one place to another on its own!

In the next exercise, we'll have a go at this: first we need to build a map, then we can use that map to implement autonomous navigation!

Exercise 4: SLAM and Navigation¶

Step 1: Mapping

Make sure none of your code from the previous exercise is still running now, TERMINAL 1 should be idle, ready to accept some new instructions!
Place your robot in the enclosure that we have created in the lab.
Then, in TERMINAL 1, run the following command:

TERMINAL 1:
```
roslaunch amr31001 ex4_slam.launch
```

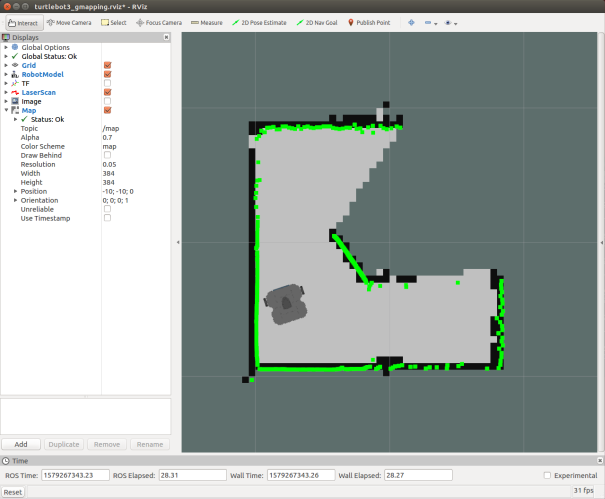

An RViz screen will open up showing the robot from a top-down view, with the LiDAR data represented by green dots.

SLAM is already working, and you should notice black lines forming underneath the green LiDAR dots to indicate the regions that SLAM has already determined as static and which therefore represent boundaries in the environment.
In TERMINAL 2 launch the turtlebot3_teleop_keyboard node again, to drive the robot around:

TERMINAL 2:
```
rosrun turtlebot3_teleop turtlebot3_teleop_key
```

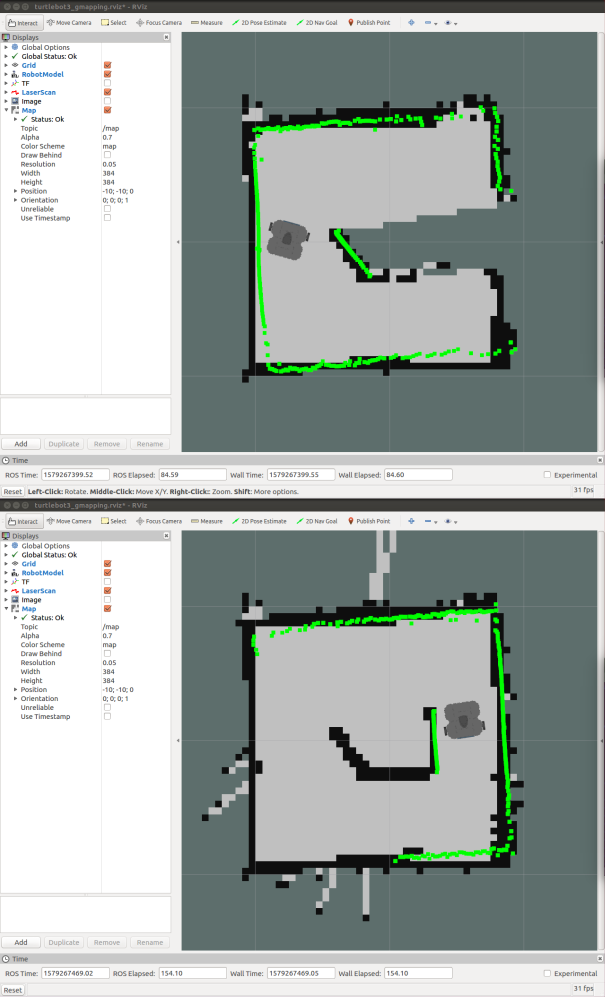

Drive the robot around until SLAM has built up a complete map of the entire arena.
Once you're happy with this, stop the turtlebot3_teleop_keyboard node by hitting Ctrl+C in TERMINAL 2. You can also stop SLAM now too, so head back to TERMINAL 1 and enter Ctrl+C to stop this too.
While you were doing the above, a map file was being constantly updated and saved to the laptop's filesystem. Have a quick look at this now to make sure that the map that you have built is indeed a good representation of the environment:

TERMINAL 1:
```
eog ~/catkin_ws/src/amr31001/maps/my_map.pgm
```
If the map looks like the actual arena then you're good to move on, but if not then you may need to repeat the above steps again to give it another go.

Step 2: Navigating Autonomously

Using the map that you've just created you should now be able to make your robot navigate around the real environment!

Launch the navigation processes in TERMINAL 1 by entering the following command:

TERMINAL 1:
```
roslaunch amr31001 ex4_nav.launch
```
RViz should then open up again, once again with a top-down view of the robot, but this time with the map that you generated earlier displayed underneath it (in black).
To begin with, the robot needs to know roughly where it is within this map, and we can tell it this by performing a manual "2D Pose Estimation".

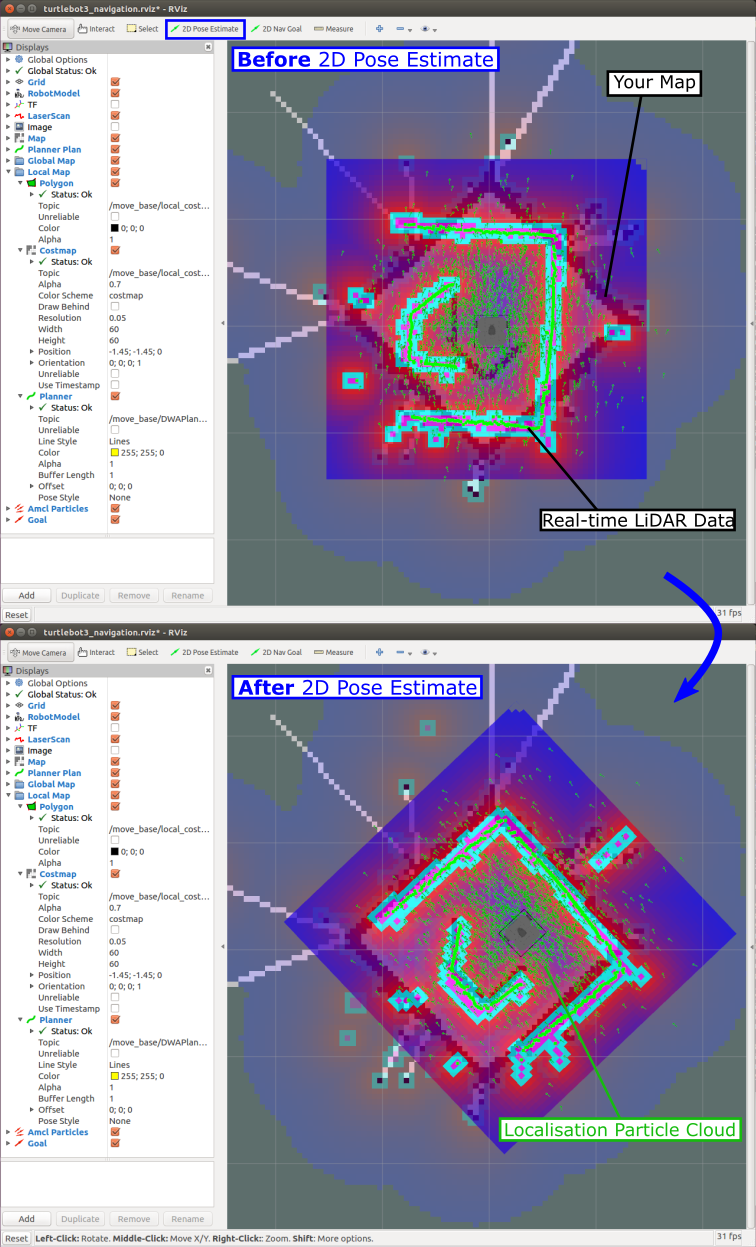

1. Press the "2D Pose Estimate" button at the top of the RViz screen.
2. The map should be visible (in black) in the background underneath all the live LiDAR Data (displayed in green), but the two are probably not lined up properly. Move the cursor to the approximate point on the background map at which the robot is actually located.
3. Press and hold the left mouse button and a large green arrow will appear.
4. Whilst still holding down the left mouse button, rotate the green arrow to set the robot's orientation within the map.
5. Let go of the left mouse button to set the pose estimation. If done correctly, the real-time LiDAR data should nicely overlap the background map after doing this:

  ... if not, then have another go!
We then need to give the robot a chance to determine its pose more accurately. The navigation processes that are running in the background are currently generating what's called a "localisation particle cloud", which is displayed as lots of tiny green arrows surrounding the robot in RViz. The scatter of these green arrows indicates the level of certainty the robot currently has about its true pose (position and orientation) within the environment: a large scatter indicates a high level of uncertainty, and we need to improve this before we can make the robot navigate around autonomously.

We can improve this by simply driving the robot around the environment a bit, so that it gets the opportunity to see different walls and obstacles from different perspectives. In the background, the navigation algorithms will be comparing the real time LiDAR data with the background map that was generated earlier, and when the two things line up well, the robot becomes more certain about its pose in the environment.

Once again, launch the turtlebot_teleop_keyboard node in TERMINAL 2, and drive the robot around a bit:

TERMINAL 2:
```
rosrun turtlebot3_teleop turtlebot3_teleop_key
```

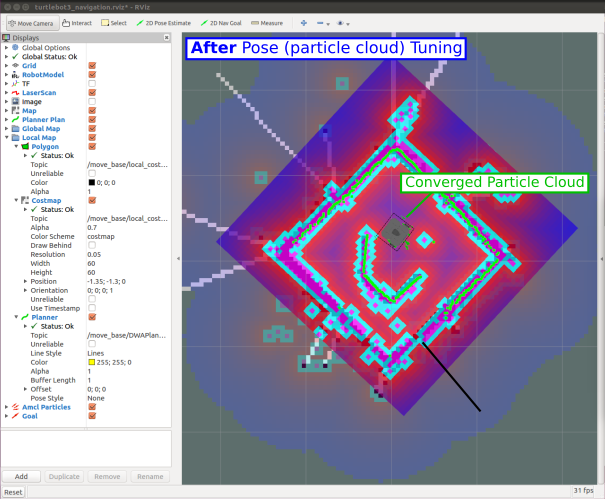

As you're doing this, watch how the scatter in the localisation particle cloud reduces, and the small green arrows begin to converge underneath the robot.
Now, click the "2D Nav Goal" button:
1. Move the cursor to the location that you want the robot to move to on the map.
2. Click and hold the left mouse button and a large green arrow will appear again to indicate that the position goal has been set.
3. Whilst still holding the left mouse button, rotate the green arrow around to set the desired orientation goal.
4. Release the mouse button to set the goal...

  The robot will then try its best to navigate to the destination autonomously!
Post-lab Quiz

What does a ROS robot need in order to be able to navigate an environment autonomously?

Wrapping Up¶

Before you leave, please turn off your robot! Enter the following command in TERMINAL 1 to do so:

TERMINAL 1:

waffle NUM off

... again, replacing NUM with the number of the robot that you have been working with today.

You'll need to enter y and then hit Enter to confirm this.

Please then shut down the laptop, which you can do by clicking the battery icon in the top right of the desktop and selecting the "Power Off / Log Out" option in the drop-down menu.

AMR31001 Lab 2 Complete!

https://en.wikipedia.org/wiki/Odometry ↩
