Part 2: Odometry & Navigation

Introduction¶

Exercises: 6
Estimated Completion Time: 3 hours
Difficulty Level: Intermediate

Aims¶

In Part 2 we'll learn how to control a ROS robot's position and velocity from both the command line and through ROS Nodes. We'll also learn how to interpret the data that allows us to monitor a robot's position in its physical environment (odometry). The things covered here form the basis of robot navigation in ROS, from simple open-loop methods to more advanced closed-loop control (both of which we will explore).

Intended Learning Outcomes¶

By the end of this session you will be able to:

Interpret the Odometry data published by a ROS Robot and identify the parts of these interface messages that are relevant to a 2-wheeled differential drive robot (such as the TurtleBot3 Waffle).
Develop Python nodes to obtain Odometry data from an active ROS network and translate this into useful information about a robot's pose in a convenient, human-readable way.
Implement open-loop velocity control of a robot using ROS command-line tools.
Develop Python nodes that use open-loop velocity control methods to make a robot follow a pre-defined motion path.
Combine both publisher & subscriber communication methods into a single Python node to implement closed-loop (odometry-based) velocity control of a robot.
Explain the limitations of Odometry-based motion control methods.

Quick Links¶

Exercises¶

Exercise 1: Exploring Odometry Data
Exercise 2: Creating a Python Node to Process Odometry Data
Exercise 3: Controlling Velocity with the ROS 2 CLI
Exercise 4: Creating a Python Node to Make a Robot Move in a circle
Exercise 5: Implementing a Shutdown Procedure
Exercise 6: Making our Robot Follow a Square Motion Path

Additional Resources¶

Getting Started¶

Step 1: Launch your ROS 2 Environment

If you haven't done so already, launch your ROS environment now:

WSL-ROS2 on a university managed desktop: follow the instructions here to launch it.
Running WSL-ROS2 on your own machine: launch the Windows Terminal to access a WSL-ROS2 terminal instance.
Docker Users: follow the instructions.

You should now have access to ROS 2 via a Linux terminal instance. We'll refer to this terminal instance as TERMINAL 1.

Step 2: Restore your work (WSL-ROS2 Managed Desktop Users ONLY)

Remember that any work that you do within the WSL-ROS2 Environment will not be preserved between sessions or across different University computers. At the end of Part 1 you should have run the wsl_ros tool to back up your home directory to your University U:\ Drive. Once WSL-ROS2 is up and running, you should be prompted to restore this:

It looks like you already have a backup from a previous session:
  U:\wsl-ros\ros2-backup-XXX.tar.gz
Do you want to restore this now? [y/n]

Enter Y+Enter to restore your work from last time. You can also restore your work at any time using the following command:

wsl_ros restore

Step 3: Launch VS Code

It's also worth launching VS Code now, so that it's ready to go for when you need it later on.

WSL Users...

It's important to launch VS Code within your WSL environment using the "WSL" extension. Always remember to check for this:

Step 4: Make Sure The Course Repo is Up-To-Date

In Part 1 you should have downloaded and installed The Course Repo into your ROS environment. If you haven't done this yet then go back and do it now. If you have already done it, then it's worth just making sure it's all up-to-date, so run the following command in TERMINAL 1 now to do so:

cd ~/ros2_ws/src/tuos_ros/ && git pull

Then build with Colcon:

cd ~/ros2_ws/ && colcon build --packages-up-to tuos_ros

And finally, re-source your environment:

source ~/.bashrc

Warning

If you have any other terminal instances open, then you'll need run source ~/.bashrc in these too, in order for any changes made by the Colcon build process to propagate through to these as well.

Step 5: Launch a Waffle Simulation

In TERMINAL 1 enter the following command to launch a simulation of a TurtleBot3 Waffle in an empty world:

ros2 launch turtlebot3_gazebo empty_world.launch.py

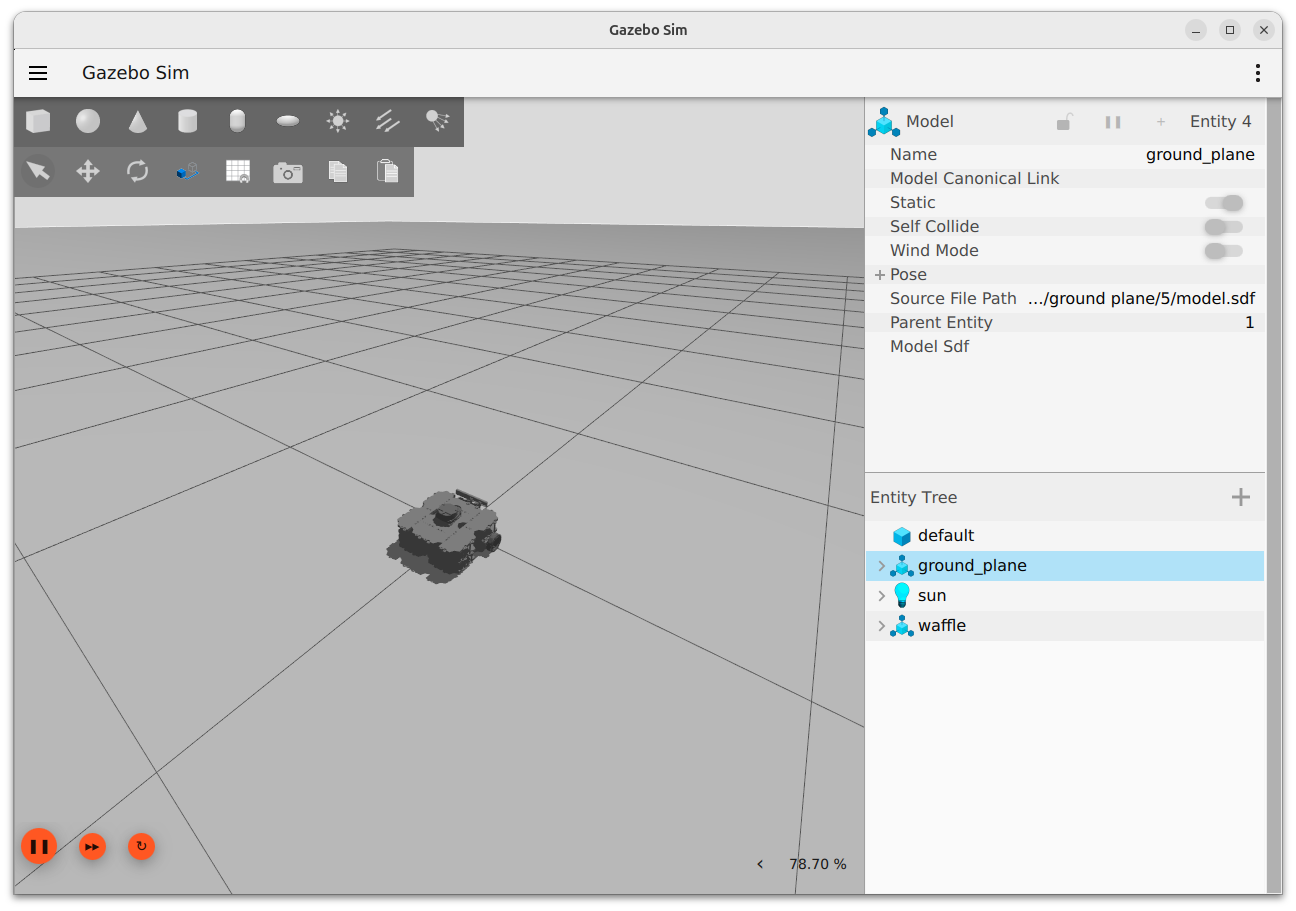

A Gazebo simulation window should open and within this you should see a TurtleBot3 Waffle in empty space:

ROS Topics and Interfaces (from Part 1)¶

In Part 1 we learnt about ROS Topics, and about how the teleop_keyboard node could be used to publish messages to a particular topic in order to control the velocity of the robot (and thus change its position).

Questions

Which topic is used to control the velocity of the robot?
What interface does this topic use?

Return here if you need a reminder on how to find the answers to these questions.

Recall that Topics are key to making things happen on a robot: data is passed between the Nodes on a ROS network via Topics using standardised data structures called Message Interfaces, allowing each of these nodes to make decisions and perform necessary tasks to bring the robot to life.

Having investigated the /cmd_vel topic in Part 1, let's have a look at another topic now: /odom, and consider what the information here means, and what it's used for.

Odometry¶

Odometry is a process of monitoring a robot's position and orientation in an environment, which (as we'll learn) is essential for robot navigation. The position and orientation of a robot is referred to as its pose. A robot's pose is 3-dimensional, and is therefore defined in terms of three "Principal Axes": X, Y and Z. In the context of our TurtleBot3 Waffles, these axes and the motion about them are defined as follows:

Not all the above positions and orientations apply to our Waffles, and we'll explore this further below.

Odometry In Action¶

Recall from Part 1 the command that we can use to list all the topics that are available on our robot:

ros2 topic list

You should see /odom in this list, which is where our robot's Odometry data is published. Run the ros2 topic command again, but this time with an additional -t option:

ros2 topic list -t

Look for /odom again in the list, and you will now notice that the interface definition is provided in square brackets alongside the topic name:

/odom [nav_msgs/msg/Odometry]

Questions

What package does this interface belong to?
What type of interface is it?
What is its name?

See here for a reminder on how to interpret an interface definition.

Having established the data structure, let's explore the actual data now, using rqt.

Exercise 1: Exploring Odometry Data¶

In a new terminal instance (TERMINAL 2) use the following command to launch the RQT Topic Monitor:
```
ros2 run rqt_topic rqt_topic
```

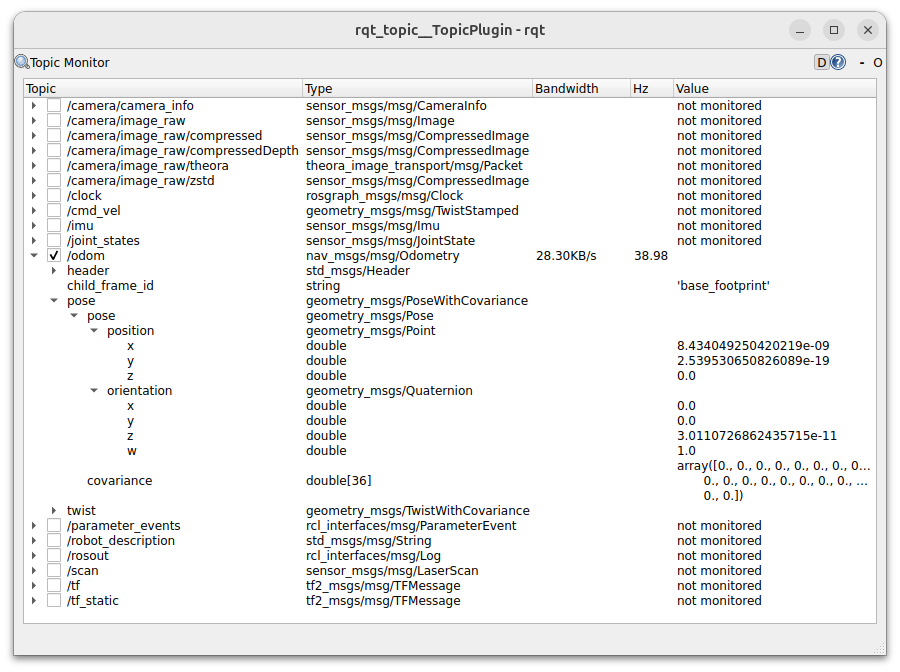

Topic Monitor should launch with a list of active topics matching the topic list from the ros2 topic list command that you ran earlier.
Check the box next to /odom and click the arrow next to it to expand the topic and reveal four base fields.
Expand the pose field, and then the further pose field within that. This should reveal two further fields: position and orientation.

Expand both of these to reveal the data being published to the three position (x, y and z) and four orientation (x, y, z and w) values.
Next, launch a new terminal instance, we'll call this one TERMINAL 3. Arrange this next to the rqt window, so that you can see them both side-by-side.
In TERMINAL 3 launch the teleop_keyboard node as you did in Part 1:
```
ros2 run turtlebot3_teleop teleop_keyboard
```
Enter A a couple of times to make the robot rotate on the spot. Observe how the odometry data changes in Topic Monitor.

Question

Which pose fields are changing?
Now press the S key to halt the robot, then press W a couple of times to make the robot drive forwards.

Question

Which pose fields are changing now? How does this relate to the position of the robot in the simulated world?
Now press D a couple of times and your robot should start to move in a circle.

Question

What's happening with the pose data now? How is this data changing as your robot moves in a circular path.
Press S in TERMINAL 3 to stop the robot (but leave the teleop_keyboard node running). Then, press Ctrl+C in TERMINAL 2 to close down rqt.
Let's look at the Odometry data differently now. With the robot stationary, use ros2 run (in TERMINAL 2) to run a Python node from the tuos_examples package:
```
ros2 run tuos_examples robot_pose.py
```
Now (using the teleop_keyboard node in TERMINAL 3) drive your robot around again, keeping an eye on the outputs that are being printed by the robot_pose.py node in TERMINAL 2 as you do so.

The output of the robot_pose.py node shows you how the robot's position and orientation (i.e. "pose") are changing in real-time as you move the robot around. The "initial" column tells us the robot's pose when the node was first launched, and the "current" column show us what its pose currently is. The "delta" column then shows the difference between the two.

Question

Which pose parameters haven't changed, and is this what you would expect (considering the robot's principal axes, as illustrated above)?
Press Ctrl+C in TERMINAL 2 and TERMINAL 3, to stop the robot_pose.py and teleop_keyboard nodes.

Odometry Explained¶

Hopefully you're starting to understand what Odometry is now, but let's dig a little deeper using some key ROS command line tools again. IN TERMINAL 2:

ros2 topic info /odom

This provides information about the interface used by this topic:

Type: nav_msgs/msg/Odometry

We can find out more about this interface using the ros2 interface show command:

ros2 interface show nav_msgs/msg/Odometry

Look down the far left-hand side to identify the four base fields of the interface (the fields that are not indented):

#	Field Name	Field Type
1	`header`	`std_msgs/Header`
2	`child_frame_id`	`string`
3	`pose`	`geometry_msgs/PoseWithCovariance`
4	`twist`	`geometry_msgs/TwistWithCovariance`

We saw all these in rqt earlier. As before, its item 3 that's of most interest to us...

Pose¶

# Estimated pose that is typically relative to a fixed world frame.
geometry_msgs/PoseWithCovariance pose
        Pose pose
                Point position
                        float64 x
                        float64 y
                        float64 z
                Quaternion orientation
                        float64 x
                        float64 y
                        float64 z
                        float64 w
        float64[36] covariance

Within the pose base field we have two subfields: pose and covariance:

#	Field Name	Field Type
1	`pose`	`Pose`
2	`covariance`	`float64[36]`

It's the pose subfield that we're most interested in here, which contains two further subfields called position and orientation:

#	Field Name	Field Type
1	`position`	`Point`
2	`orientation`	`Quaternion`

position

Tells us where our robot is located in 3-dimensional space. This is expressed in units of meters.
orientation

Tells us which way our robot is pointing in its environment. This is expressed in units of Quaternions, which is a mathematically convenient way to store data related to a robot's orientation (it's a bit hard for us humans to understand and visualise this though, so we'll talk about how to convert it to a different format later).

Pose is defined relative to an arbitrary reference point, typically where the robot was when it was turned on, or the origin of a simulated world. On our real TurtleBot3 Waffle robots, it is determined from:

Data from the Inertial Measurement Unit (IMU) on the OpenCR board
Data from both the left and right wheel encoders
A kinematic model of the robot

All the above information can then be used to calculate (and keep track of) the distance travelled by the robot from its pre-defined reference point using a process called "dead-reckoning."

What are Quaternions?¶

Quaternions represent the orientation of something in 3 dimensional space¹, as we can observe from the structure of the nav_msgs/msg/Odometry ROS interface, there are four fields associated with this:

Quaternion orientation
        float64 x
        float64 y
        float64 z
        float64 w

For us, it's easier to think about the orientation of our robot in a "Euler Angle" representation, which tell us the degree of rotation about the three principal axes (as discussed above):

\(\theta_{x}\): The angular position about the X-axis, aka "Roll"
\(\theta_{y}\): The angular position about the Y-axis, aka "Pitch"
\(\theta_{z}\): The angular position about the Z-axis, aka "Yaw"

Fortunately, the maths involved in converting between these two orientation formats is fairly straight forward (see here).

Which Pose Values Apply to our Waffles?¶

Referring back to the three principal axes from earlier:

You can also see here that our TurtleBot3 has two motors that allow it to move. As a result of this, it can only move in a 2D plane and so its pose can be fully represented by just 3 odometry terms in total:

\(x\) & \(y\): the 2D coordinates of the robot in the X-Y plane
\(\theta_{z}\): the angle of the robot about the Z-axis (yaw)

(unfortunately, it can't fly!)

Odometry Data as a Feedback Signal¶

Odometry data can be really useful for robot navigation, allowing us to keep track of where a robot is, how it's moving and how to get back to where we started. We therefore need to know how to use this data effectively within our Python nodes, and we'll explore this now.

Exercise 2: Creating a Python Node to Process Odometry Data¶

In Part 1 we learnt how to create a package and build simple Python nodes to publish and subscribe to messages on a topic. In this exercise we'll build a new subscriber node, much like we did previously, but this one will subscribe to the /odom topic that we've been talking about above. We'll also create a new package called part2_navigation for this node to live in!

First, head to the src directory of your ROS 2 workspace in TERMINAL 2:
```
cd ~/ros2_ws/src/
```

Clone the ROS 2 Package Template:

git clone https://github.com/tom-howard/ros2_pkg_template.git

Run the init_pkg.sh script within this to initalise that package with the name "part2_navigation":
```
./ros2_pkg_template/init_pkg.sh part2_navigation
```
Then navigate into the new package using cd:
```
cd ./part2_navigation/
```
The subscriber that we will build here will have a similar structure to the subscriber that we built in Part 1. As a starting point, copy across the subscriber.py file from your part1_pubsub package using the cp command (i.e. copy):
```
cp ../part1_pubsub/scripts/subscriber.py ./scripts/odom_subscriber.py
```
Info: Copying files in a terminal

When using the cp command to copy things, we need to provide two key bits of information (at least):
```
cp SOURCE DEST
```
i.e.: copy the file SOURCE to the destination DEST.

Remember that we are located in our part2_navigation package root folder when we run this, and the file paths that we are using here are all relative to that location.

As such, .. means "go back one directory," so when defining the SOURCE file that we want to copy, we're telling cp to go out of the part2_navigation directory (back to ~/ros2_ws/src/), and then go into the part1_pubsub directory from there (and onwards into scripts).

. means "this current directory," so when defining where we want the subscriber.py to be copied to (DEST), we're telling cp to start from where we currently are in the filesystem (i.e. ~/ros2_ws/src/part2_navigation/) and copy it into the scripts directory from there (whilst also renaming it to odom_subscriber.py).
Next, head to the following page for step-by-step instructions on how to build the odometry subscriber:

Building the odom_subscriber.py node

Now, declare the odom_subscriber.py node as an executable in the CMakeLists.txt:

CMakeLists.txt

# Install Python executables
install(PROGRAMS
  scripts/basic_velocity_control.py
  scripts/stop_me.py
  scripts/odom_subscriber.py
  DESTINATION lib/${PROJECT_NAME}
)

Head back to the terminal and use Colcon to build the package (including the new odom_subscriber.py node). This is a three-step process, that you must always follow:
1. Navigate to the root of the ROS 2 workspace:
```
cd ~/ros2_ws/
```
2. Build your package using colcon:
```
colcon build --packages-select part2_navigation --symlink-install
```
3. And finally, re-source the .bashrc:
```
source ~/.bashrc
```
Now we're ready to run this! Do so using ros2 run and see what it does:
```
ros2 run part2_navigation odom_subscriber.py
```

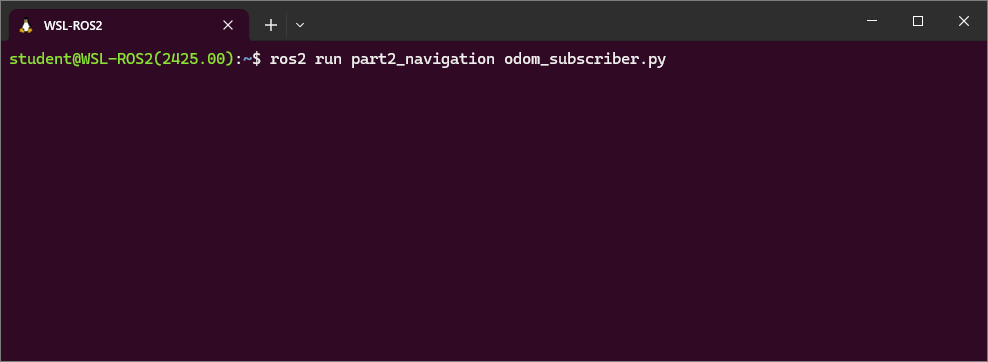

Having followed all the steps, the output from your node should be similar to that shown below:

[TODO: NEEDS UPDATING]
Observe how the output (the formatted odometry data) changes while you move the robot around using the teleop_keyboard node in TERMINAL 3.
Stop your odom_subscriber.py node in TERMINAL 2 and the teleop_keyboard node in TERMINAL 3 by entering Ctrl+C in each of the terminals.

Basic Navigation: Open-loop Velocity Control¶

In order to change our robot's pose, we need to apply velocity to make it move. We learnt about this in Part 1, but let's look at it all in a bit more detail now.

We know that we can use the /cmd_vel topic to publish velocity commands to our robot. Let's remind ourselves how these velocity commands must be structured:

ros2 topic info /cmd_vel

This tells us that the data that is transmitted on the /cmd_vel topic is of the geometry_msgs/msg/TwistStamped interface type.

We also learnt how to find out more about this particular interface (using the ros2 interface show command):

ros2 interface show geometry_msgs/msg/TwistStamped

std_msgs/Header header
        builtin_interfaces/Time stamp
                int32 sec
                uint32 nanosec
        string frame_id
Twist twist
        Vector3  linear
                float64 x
                float64 y
                float64 z
        Vector3  angular
                float64 x
                float64 y
                float64 z

There are two base fields in this data structure:

#	Field Name	Data Type
1	`header`	`std_msgs/Header`
2	`twist`	`Twist`

Each of these base fields are comprised of further subfields. It's the twist field that's of most interest to us, and this comprises two further subfields:

#	Field Name	Data Type
1	`linear`	`Vector3`
2	`angular`	`Vector3`

Each of these contains 3 further subfields: x, y and z:

#	Field Name	Data Type
1	`x`	`float64`
2	`y`	`float64`
3	`z`	`float64`

Velocity Commands¶

There are therefore six velocity fields that we can assign values to when sending velocity commands to a ROS robot: two velocity types, each with three velocity components:

Velocity Type	Component 1	Component 2	Component 3
`linear`	`x`	`y`	`z`
`angular`	`x`	`y`	`z`

These relate to a robot's six degrees of freedom (DOFs), and velocity commands are therefore formatted to give a ROS Programmer the ability to ask a robot to move in any one of its six DOFs.

Component (Axis)	Linear Velocity	Angular Velocity
X	"Forwards/Backwards"	"Roll"
Y	"Left/Right"	"Pitch"
Z	"Up/Down"	"Yaw"

The Degrees of Freedom of our Waffles¶

Recall (again) our robot's "Principal Axes" and the motion about them:

As discussed above, our Waffles only have two motors. These two motors can be controlled independently (in what is known as a "differential drive" configuration), which ultimately provides it with a total of two degrees of freedom overall, as highlighted below.

When issuing velocity commands to our Waffles therefore, only two (of the six) velocity command fields are applicable: linear velocity in the x-axis (Forwards/Backwards) and angular velocity about the z-axis (Yaw).

Principal Axis	Linear Velocity	Angular Velocity
X	"Forwards/Backwards"	~~"Roll"~~
Y	~~"Left/Right"~~	~~"Pitch"~~
Z	~~"Up/Down"~~	"Yaw"

Maximum Velocity Limits

Keep in mind (while we're on the subject of velocity) that our TurtleBot3 Waffles have maximum velocity limits:

Velocity Component	Upper Limit	Units
Linear (in the X axis)	0.26	m/s
Angular (about the Z axis)	1.82	rad/s

Exercise 3: Controlling Velocity with the ROS 2 CLI¶

Warning

Make sure that you've stopped the teleop_keyboard node before starting this exercise!

We can use the ros2 topic pub command to publish data to a topic from a terminal by using the command in the following way:

ros2 topic pub {topic_name} {interface_type} {data}

As discussed above, the /cmd_vel topic is expecting interface messages containing linear and angular velocity data, each with x, y and z values associated with them. We can compose these messages in a terminal and publish them with the ros2 topic pub command, provided we take care to format the messages correctly to conform with the geometry_msgs/msg/TwistStamped data structure.

In TERMINAL 3 enter the following, this will end up being quite a long command, so let's break it down a little:
1. Start with the desired subcommand of ros2 topic:
```
ros2 topic pub
```
2. Next comes the name of the topic that we want to publish to:
```
ros2 topic pub /cmd_vel
```
3. Next, we define the interface type that this topic uses. Start typing this and then enter the Tab key where shown, and it should autocomplete for you:
```
ros2 topic pub /cmd_vel geom[TAB]
```
  Which should autocomplete the interface type for you:
```
ros2 topic pub /cmd_vel geometry_msgs/msg/TwistStamped
```
  Tip

  You can use Tab to autocomplete lots of terminal commands, experiment with it - it'll save you lots of time!
4. Finally, provide the values to be published, which must be formatted according to the interface definition (as we established earlier):
```
ros2 topic pub /cmd_vel geometry_msgs/msg/TwistStamped \
"{header: auto, \
  twist: { \
    linear: {x: 0.0, y: 0.0, z: 0.0}, \
    angular: {x: 0.0, y: 0.0, z: 0.0} \
  } \
}"
```
Scroll back through the message using the Left key on your keyboard and then edit the values of the various fields, as appropriate.

First, define some values that would make the robot rotate on the spot.
Enter Ctrl+C in TERMINAL 3 to stop the message from being published.

Notice that the robot carries on moving even when you stop the ros2 topic pub process...

In order to make the robot actually stop, we need to publish a new message containing alternative velocity commands.
In TERMINAL 3 press the Up key on your keyboard to recall the previous command, but don't press Enter just yet! Now press the Left key to track back through the message and change the velocity field values back to 0.0 in order to now make the robot stop.
Once again, enter Ctrl+C in TERMINAL 3 to stop the publisher from actively publishing new messages, and then follow the same steps as above to compose another new message to now make the robot move in a circle.
Enter Ctrl+C to again stop the message from being published, publish a further new message to stop the robot, and then compose (and publish) a message that would make the robot drive in a straight line.
Finally, stop the robot again!

Exercise 4: Creating a Python Node to Make a Robot Move in a circle¶

Controlling a robot from the terminal (or by using the teleop_keyboard node) is all well and good, but what about if we need to implement some more advanced control or autonomy?

We'll now learn how to control the velocity of our robot programmatically, from a Python Node. We'll start out with a simple example to achieve a simple velocity profile (a circle), but this will provide us with the basis on which we can build more complex velocity control algorithms (which we'll look at in the following exercise).

In Part 1 we built a simple publisher node, and this one will work in much the same way, but this time however, we need to publish Twist type messages to the /cmd_vel topic instead...

In TERMINAL 2, ensure that you're located within the scripts folder of your part2_navigation package (you could use pwd to check your current working directory).

If you aren't located here then navigate to this directory using cd.
Create a new file called move_circle.py:
```
touch move_circle.py
```
... and make this file executable using the chmod command (as we did in Part 1).
The task is to make the robot move in a circle with a path radius of approximately 0.5 meters.

Follow the instructions on the following page for building this:

Building the move_circle.py node

Next (hopefully you're getting the idea by now!), declare the move_circle.py node as an executable in the part2_navigation/CMakeLists.txt file:

CMakeLists.txt

# Install Python executables
install(PROGRAMS
  scripts/basic_velocity_control.py
  scripts/stop_me.py
  scripts/odom_subscriber.py
  scripts/move_circle.py
  DESTINATION lib/${PROJECT_NAME}
)

Finally, head back to TERMINAL 2 and use Colcon to build the new node alongside everything else in the package, using the same three-step process as before:
1. First:
```
cd ~/ros2_ws/
```
2. Then:
```
colcon build --packages-select part2_navigation --symlink-install
```
3. And finally, re-source again:
```
source ~/.bashrc
```
Run this node now, using ros2 run and see what happens:
```
ros2 run part2_navigation move_circle.py
```
Head back to the Gazebo simulation and watch as the robot moves around in a circle of 0.5-meter radius!
Once you're done, enter Ctrl+C in TERMINAL 2 to stop the move_circle.py node.
Question

What happens to the robot when you hit Ctrl+C to stop the move_circle.py node?

Answer: It carries on moving !

You can run another node from within your package to actually stop it:
```
ros2 run part2_navigation stop_me.py
```

Exercise 5: Implementing a Shutdown Procedure¶

Clearly, our work on the move_circle.py node isn't quite done. When we terminate our node we'd expect the robot to stop moving, but this (currently) isn't the case.

You may have also noticed (with all the nodes that we have created so far) an error traceback in the terminal, every time we hit Ctrl+C.

None of this is very good, and we'll address this now by modifying the move_circle.py file to incorporate a proper (and safe) shutdown procedure.

Return to the move_circle.py file in VS Code.
First, we need to add an import to our Node:
```
from rclpy.signals import SignalHandlerOptions
```
You'll see what this is for shortly...
Then move on to the __init__() method of your Circle() class.

Add in a boolean flag here called shutdown:
```
self.shutdown = False
```
... to begin with, we want this to be set to False.
Next, add a new method to your Circle() class, called on_shutdown():
```
def on_shutdown(self):
    self.get_logger().info(
        "Stopping the robot..."
    )
    self.my_publisher.publish(TwistStamped()) # (1)!
    self.shutdown = True # (2)!
```
1. All velocities within the Twist(Stamped) message class are set to zero by default, so we can just publish this as-is, in order to ask the robot to stop.
2. Set the shutdown flag to true to indicate that a stop message has now been published.
Finally, head to the main() function of the script. This is where most of the changes need to be made...
```
def main(args=None):
    rclpy.init(
        args=args,
        signal_handler_options=SignalHandlerOptions.NO
    ) # (1)!
    move_circle = Circle()
    try:
        rclpy.spin(move_circle) # (2)!
    except KeyboardInterrupt: # (3)!
        print(
            f"{move_circle.get_name()} received a shutdown request (Ctrl+C)."
        )
    finally:
        move_circle.on_shutdown() # (4)!
        while not move_circle.shutdown: # (5)!
            continue
        move_circle.destroy_node() # (6)!
        rclpy.shutdown()
```
1. When initialising rclpy, we're requesting for our move_circle.py node to handle "signals" (i.e. events like a Ctrl+C), rather than letting rclpy handle these for us. Here we're using the SignalHandlerOptions object that we imported from rclpy.signals earlier.
2. We set our node to spin inside a Try-Except block now, so that we can catch a KeyboardInterrupt (i.e. a Ctrl+C) and act accordingly when this happens.
3. On detection of the KeyboardInterrupt we print a message to the terminal. After this, the code will move on to the finally block...
4. Call the on_shutdown() method that we defined earlier. This will ensure that a STOP command is published to the robot (via /cmd_vel).
5. This while loop will continue to iterate until our boolean shutdown flag has turned True, to indicate that the STOP message has been published.
6. The rest is the same as before...

  ... destroy the node and then shutdown rclpy.
With all this in place, run the node again now (ros2 run ...).

Now, when you hit Ctrl+C you should find that the robot actually stops moving. Ah, much better!

Over the course of the previous two exercises we've created a Python node to make our robot move using open-loop control. To achieve this we published velocity commands to the /cmd_vel topic to make the robot follow a circular motion path.

Questions

How do we know if our robot actually achieved the motion path that we asked for?
In a real-world environment, what external factors might result in the robot not achieving its desired trajectory?

Earlier on we also learnt about Robot Odometry, which is used by the robot to keep track of its position and orientation (aka Pose) in the environment. As explained earlier, this is determined by a process called "dead-reckoning," which is only really an approximation, but it's a fairly good one in any case, and we can use this as a feedback signal to understand if our robot is moving in the way that we expect it to.

We can therefore build on the techniques that we used in the move_circle.py exercise, and now also build in the ability to subscribe to a topic too and obtain some real-time feedback. To do this, we'll need to subscribe to the /odom topic, and use this to implement some basic closed-loop control.

Exercise 6: Making our Robot Follow a Square Motion Path¶

Make sure your move_circle.py node is no longer running in TERMINAL 2, stopping it with Ctrl+C if necessary.
Make sure TERMINAL 2 is still located inside your part2_navigation package.
Navigate to the package scripts directory and use the Linux touch command to create a new file called move_square.py:
```
touch move_square.py
```
Then make this file executable using chmod:
```
chmod +x move_square.py
```
Define move_square.py as a package executable in your CMakeLists.txt file (you should know how to do this by now, but if not, refer back to either Exercise 2 or Exercise 4).
Use the VS Code File Explorer to navigate to this move_square.py file and open it up, ready for editing.
There's a template below to help you with this exercise.

Access the move_square.py template here

Copy and paste the template code into your new move_square.py file to get you started.
Re-build your part2_navigation package, to include your new move_square.py node, following that three-step build process once again:

Step 1:
```
cd ~/ros2_ws/
```
Step 2:
```
colcon build --packages-select part2_navigation --symlink-install
```
Step 3:
```
source ~/.bashrc
```
Run the code as it is to see what happens...

Fill in the Blank!

Something not quite working as expected? Did we forget something very crucial on the very first line of the code template?!
Fill in the blank as required and then adapt the code to make your robot follow a square motion path of 1 x 1 meter dimensions.

After following a square motion path a few times, your robot should return to the same location that it started from.

Advanced feature

Adapt the node to make the robot automatically stop once it has performed two complete loops.

Wrapping Up¶

In this session we've learnt how to control the velocity and position of a robot from both the command-line (using ROS command-line tools) and from ROS Nodes by publishing correctly formatted messages to the /cmd_vel topic.

We've also learnt about Odometry, which is published by our robot to the /odom topic. The odometry data tells us the current linear and angular velocities of our robot in relation to its 3 principal axes. In addition to this though, it also tells us where in physical space our robot is located and oriented, which is determined based on dead-reckoning.

Questions

What information (sensor/actuator data) is used to do this?
Do you see any potential limitations of this?

In the final exercise we explored the development of odometry-based control to make a robot follow a square motion path. You will likely have observed some degree of error in this which could be due to the fact that Odometry data is determined by dead-reckoning and is therefore subject to drift and accumulated error. Consider how other factors may impact the accuracy of control too.

Questions

How might the rate at which the odometry data is sampled play a role?
How quickly can your robot receive new velocity commands, and how quickly can it respond?

Be aware that we did all this in simulation here too. In fact, in a real world environment, this type of navigation might be less effective, since things such as measurement noise and calibration errors can also have considerable impact. You will have the opportunity to experience this first hand in the labs.

Ultimately then, we've seen a requirement here for additional information to provide more confidence of a robot's location in its environment, in order to enhance its ability to navigate effectively and avoid crashing into things! We'll explore this further later in this course.

WSL-ROS2 Managed Desktop Users: Save your work!¶

Remember, the work you have done in the WSL-ROS2 environment during this session will not be preserved for future sessions or across different University machines automatically! To save the work you have done here today you should now run the following script in any idle WSL-ROS2 Terminal Instance:

wsl_ros backup

This will export your home directory to your University U:\ Drive, allowing you to restore it on another managed desktop machine the next time you fire up WSL-ROS2.

Quaternions are explained very nicely here, if you'd like to learn more. ↩

Part 2: Odometry & Navigation

Introduction¶

Aims¶

Intended Learning Outcomes¶

Quick Links¶

Exercises¶

Additional Resources¶

Getting Started¶

ROS Topics and Interfaces (from Part 1)¶

Odometry¶

Odometry In Action¶

Exercise 1: Exploring Odometry Data¶

Odometry Explained¶

Pose¶

What are Quaternions?¶

Which Pose Values Apply to our Waffles?¶

Odometry Data as a Feedback Signal¶

Exercise 2: Creating a Python Node to Process Odometry Data¶

Basic Navigation: Open-loop Velocity Control¶

Velocity Commands¶

The Degrees of Freedom of our Waffles¶

Exercise 3: Controlling Velocity with the ROS 2 CLI¶

Exercise 4: Creating a Python Node to Make a Robot Move in a circle¶

Exercise 5: Implementing a Shutdown Procedure¶

Odometry-based Navigation¶

Exercise 6: Making our Robot Follow a Square Motion Path¶

Wrapping Up¶

WSL-ROS2 Managed Desktop Users: Save your work!¶
