Part 3: Beyond the Basics

Introduction¶

Exercises: 5
Estimated Completion Time: 3 hours
Difficulty Level: Intermediate

Aims¶

In this part of the course we'll look at some more advanced ROS concepts, and explore another of our robot's on-board sensors: the LiDAR sensor. From the work you did in Part 2 you may have started to appreciate the limitations associated with using odometry data alone as a feedback signal when trying to control a robot's position in its environment. The LiDAR sensor can provide further information about an environment, thus enhancing a robot's knowledge and capabilities. To begin with however, we'll look at how to launch ROS applications more efficiently with launch files, and how the behaviour of nodes can be changed dynamically using parameters.

Intended Learning Outcomes¶

By the end of this session you will be able to:

Create launch files to allow the execution of multiple ROS Nodes simultaneously with ros2 launch.
Use parameters to influence the behaviours of nodes in real-time, without having to re-programme them.
Learn about the robot's LiDAR sensor and the measurements obtained from this.
Interpret the LaserScan data that is published to the /scan topic and use existing ROS tools to visualise this.
Perform numeric analysis on data arrays (using the numpy Python library) to process LaserScan data for use in ROS applications.
Use existing ROS tools to implement SLAM and build a map of an environment.

Quick Links¶

Exercises¶

Exercise 1: Creating a Launch File
Exercise 2: Using parameters to change robot behaviour in real-time
Exercise 3: Using RViz to Visualise LaserScan Data

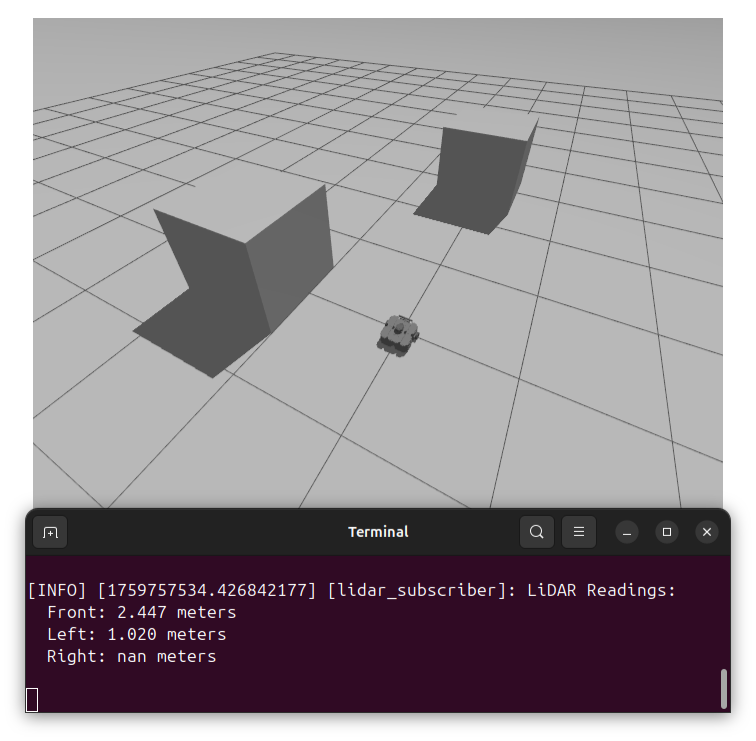

Exercise 4: Building a LaserScan Callback Function

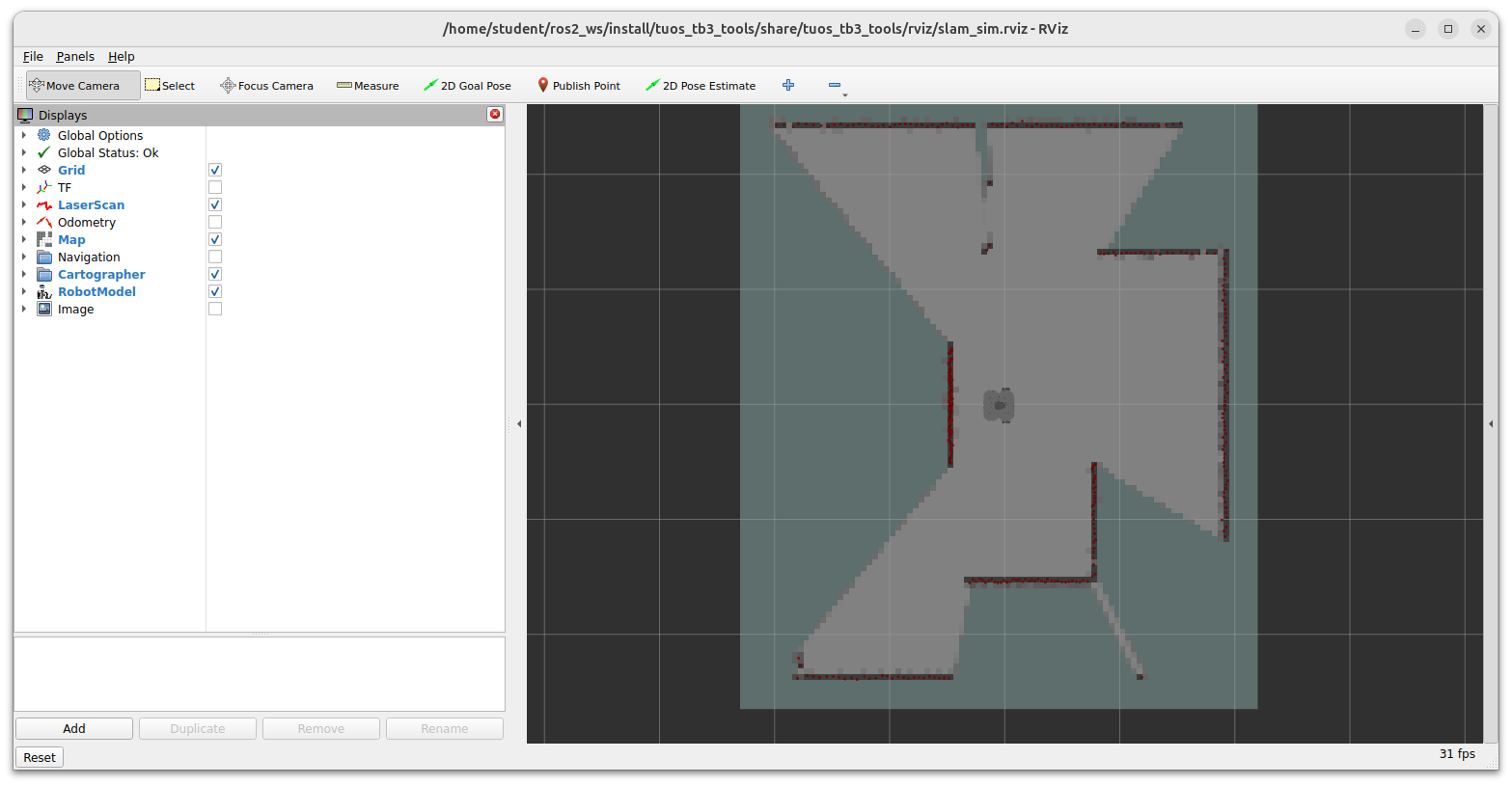

Exercise 5: Building a map of an environment with SLAM

Additional Resources¶

A Basic LaserScan Subscriber Node (for Exercise 4)

Getting Started¶

Step 1: Launch your ROS Environment

If you haven't done so already, launch your ROS environment now:

Using WSL-ROS2 on a university managed desktop machine: follow the instructions here to launch it.
Running WSL-ROS2 on your own machine: launch the Windows Terminal to access a WSL-ROS2 terminal instance.
Docker Users: Follow the relevant steps to launch a terminal instance into your local ROS installation.

You should now have access to a Linux terminal instance, and we'll refer to this terminal instance as TERMINAL 1.

Step 2: Restore your work (WSL-ROS2 Managed Desktop Users ONLY)

Remember that any work that you do within the WSL-ROS2 Environment will not be preserved between sessions or across different University computers. At the end of Part 2 you should have run the wsl_ros tool to back up your home directory to your University U:\ Drive. Once WSL-ROS2 is up and running, you should be prompted to restore this:

It looks like you already have a backup from a previous session:
  U:\wsl-ros\ros2-backup-XXX.tar.gz
Do you want to restore this now? [y/n]

Enter Y+Enter to restore your work from last time. You can also restore your work at any time using the following command:

wsl_ros restore

Step 3: Launch VS Code

It's also worth launching VS Code now, so that it's ready to go for when you need it later on.

WSL Users...

It's important to launch VS Code within your ROS environment using the "WSL" extension. Always remember to check for this:

Step 4: Make Sure The Course Repo is Up-To-Date

In Part 1 you should have downloaded and installed The Course Repo into your ROS environment. Hopefully you've done this by now, but if you haven't then go back and do it now (you'll need it for some exercises here). If you have already done it, then (once again) it's worth just making sure it's all up-to-date, so run the following command now to do so:

cd ~/ros2_ws/src/tuos_ros/ && git pull

Then run colcon build

cd ~/ros2_ws/ && colcon build --packages-up-to tuos_ros

And finally, re-source your environment:

source ~/.bashrc

Remember

If you have any other terminal instances open, then you'll need run source ~/.bashrc in these too, in order for the changes to propagate through to these as well!

Launch Files¶

So far (in Parts 1 & 2) we've used the ros2 run command to execute a variety of ROS nodes, such as teleop_keyboard, as well as a number of nodes that we've created of our own. You may also have noticed that we've used a ros2 launch command now and again too, mainly to launch Gazebo Simulations of our robot, but why do we have these two commands, and what's the difference between them?

Complex ROS applications typically require the execution of multiple nodes at the same time. The ros2 run command only allows us to execute a single node, and so this isn't that convenient for such complex applications, where we'd have to open multiple terminals, use ros2 run multiple times and make sure that we ran everything in the correct order without forgetting anything! ros2 launch, on the other hand, provides a means to launch multiple ROS nodes simultaneously by defining exactly what we want to launch within launch files. This makes the execution of complex applications more reliable, repeatable and easier for others to launch these applications correctly.

Exercise 1: Creating a Launch File¶

In order to see how launch files work, let's create some of our own!

In Part 1 we created publisher.py and subscriber.py nodes that could talk to one another via a topic called /my_topic. We launched these independently using the ros2 run command in two separate terminals. Wouldn't it be nice if we could have launched them both at the same time, from the same terminal instead?

To start with, let's create another new package, this time called part3_beyond_basics.

In TERMINAL 1:
1. Head to the src folder of the ROS 2 workspace:
```
cd ~/ros2_ws/src/
```
2. Clone the ROS 2 Package Template:
```
git clone https://github.com/tom-howard/ros2_pkg_template.git
```
3. Run the init_pkg.sh script from within this template to initalise a package with the name "part3_beyond_basics":
```
./ros2_pkg_template/init_pkg.sh part3_beyond_basics
```
4. And navigate into the root of this new package, using cd:
```
cd ./part3_beyond_basics/
```
Launch files should be located in a launch directory at the root of the package directory, so use mkdir to do this:
```
mkdir launch
```
Use the cd command to enter the launch folder that you just created:
```
cd launch
```
...and then use the touch command to create a new empty file called pubsub.launch.py:
```
touch pubsub.launch.py
```
Open this launch file in VS Code and enter the following:
pubsub.launch.py
```
from launch import LaunchDescription # (1)!
from launch_ros.actions import Node # (2)!

def generate_launch_description(): # (3)!
    return LaunchDescription([ # (4)!
        Node( # (5)!
            package='part1_pubsub', # (6)!
            executable='publisher.py', # (7)!
            name='my_publisher' # (8)!
        )
    ])
```
1. Everything that we want to execute with a launch file must be encapsulated within a LaunchDescription, which is imported here from the launch module.
2. In order to execute a node from a launch file we need to define it using the Node class from launch_ros.actions (not to be confused with the ROS Action communication method covered in Part 5!)
3. We encapsulate a Launch Description inside a generate_launch_description() function.
4. Here we define everything that we want this launch file to execute: in this case a Python list [] containing a single Node() item (for now).
5. Here we describe the node that we want to launch.
6. The name of the package that the node is part of.
7. The name of the actual node that we want to launch from the above package.
8. A name to register this node as on the ROS network. While this is also defined in the node itself:
```
super().__init__("simple_publisher")
```
  ...we can override this here with something else.
We need to make sure we tell colcon about our new launch directory, so that it can build the launch files within it when we run colcon build. To do this, we need to add a directory install instruction to our package's CMakeLists.txt:

Open up the CMakeLists.txt file and add the following text just above the ament_package() line at the very bottom:
part3_beyond_basics/CMakeLists.txt
```
install(DIRECTORY
  launch
  DESTINATION share/${PROJECT_NAME}
)
```
Now, let's build the package using the three-step process that you'll be becoming familiar with by now...
1. Navigate back to the root of the ROS 2 workspace:
```
cd ~/ros2_ws/
```
2. Run colcon build on your new package only:
```
colcon build --packages-select part3_beyond_basics --symlink-install
```
3. And finally, re-source the .bashrc:
```
source ~/.bashrc
```
Use ros2 launch to launch this file and test it out as it is:
```
ros2 launch part3_beyond_basics pubsub.launch.py
```

The code (as it is) will launch the publisher.py node from the part1_pubsub package, but not the subscriber.py node. We therefore need to add another Node() object to our LaunchDescription:

pubsub.launch.py

from launch import LaunchDescription
from launch_ros.actions import Node

def generate_launch_description():
    return LaunchDescription([
        Node(
            package='part1_pubsub',
            executable='publisher.py',
            name='my_publisher'
        ),
        Node(
            # TODO: define the subscriber.py node...
        )
    ])

Using the same methods as above, add the necessary definitions for the subscriber.py node into your launch file.

Once you've made these changes you'll need to run colcon build again.

Warning

You'll need to run colcon build every time you make changes to a launch file, even if you use the --symlink-install option (as this only applies to nodes in the scripts directory)

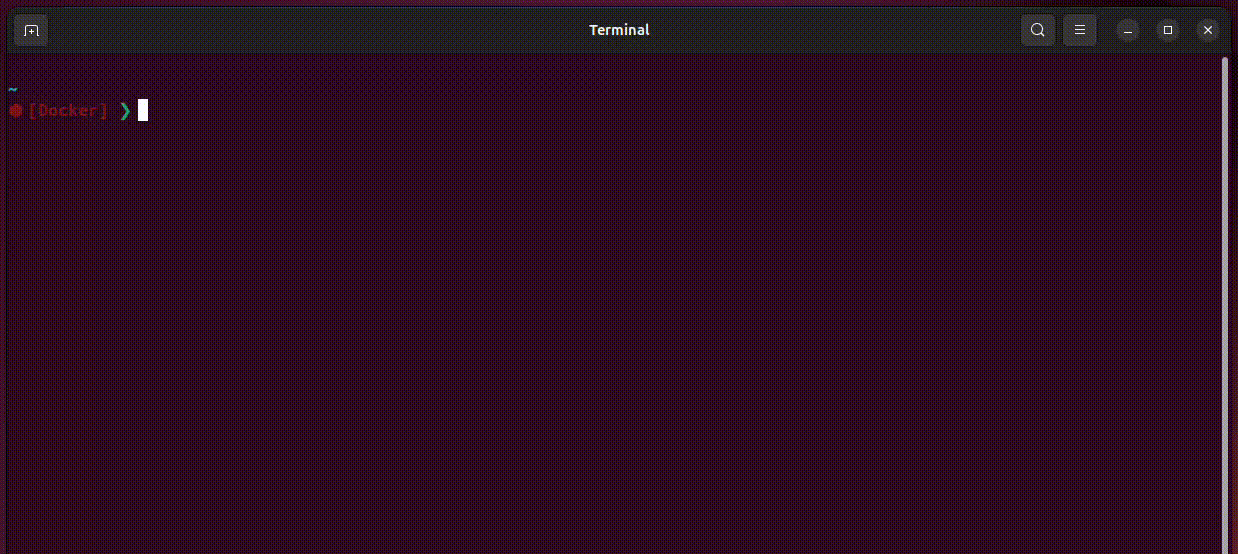

Once you've completed this, it should be possible to launch both the publisher and subscriber nodes with ros2 launch and the pubsub.launch.py file. Verify this in TERMINAL 1 by executing the launch file. Soon after launching this, you should see the following messages to indicate that both nodes are alive:

[subscriber.py-2] [INFO] [###] [my_subscriber]: The 'my_subscriber' node is initialised.
[publisher.py-1] [INFO] [###] [my_publisher]: The 'my_publisher' node is initialised.

... and following this, the outputs of both nodes should be printed to the screen continually:

[publisher.py-1] [INFO] [###] [my_publisher]: Publishing: 'The ROS time is 1737545960 (seconds).'
[subscriber.py-2] [INFO] [###] [my_subscriber]: The 'my_subscriber' node heard:
[subscriber.py-2] [INFO] [###] [my_subscriber]: 'The ROS time is 1737545960 (seconds).'

We can further verify this in a new terminal (TERMINAL 2), using commands that we've use in Parts 1 & 2 to list all nodes and topics that are active on our ROS network:
```
ros2 node list
```
```
ros2 topic list
```
Do you see what you'd expect to see in the output of these two commands?

Parameters¶

Parameters are used to configure nodes, and can be further used to change their behaviour dynamically during run time.

Exercise 2: Using parameters to change robot behaviour in real-time¶

Let's think back to our move_circle.py node from Part 2 in order to see what this could be used for. The node that we built originally would make a robot move in a circle of 0.5-meter radius, forever! Wouldn't it be nice if we could actually change the radius of the circle while the node was running?

Shutdown your pubsub.launch.py file in TERMINAL 1 if it's still running.
Now, we'll create a new version of the move_circle.py node from Part 2, that we can play around with. First, head to the scripts directory of your part3_beyond_basics package in TERMINAL 1:
```
cd ~/ros2_ws/src/part3_beyond_basics/scripts/
```
Create a new node called param_circle.py:
```
touch param_circle.py
```
and give this execute permissions:
```
chmod +x param_circle.py
```

Declare this as a package executable by opening up your package's CMakeLists.txt in VS Code and adding param_circle.py as shown below:

CMakeLists.txt

# Install Python executables
install(PROGRAMS
  scripts/basic_velocity_control.py
  scripts/stop_me.py
  scripts/param_circle.py
  DESTINATION lib/${PROJECT_NAME}
)

Re-build your package with colcon (even though param_circle.py is still just an empty file at this stage):
1. First:
```
cd ~/ros2_ws/
```
2. Then:
```
colcon build --packages-select part3_beyond_basics --symlink-install
```
3. And finally:
```
source ~/.bashrc
```
After having completed Part 2 Exercises 4 & 5, you should have a working move_circle.py node complete with a proper shutdown procedure. Take a copy of the code and paste it into your new param_circle.py file. Alternatively, if you didn't manage to finish these exercises previously, you can access a worked example here.
Now, let's modify the code:
1. First, in the __init__() method, change the name of the node:
```
super().__init__("param_circle")
```
  When launched, the node will now be registered on the ROS network with the name "param_circle".
2. Then, directly under this (still within the __init__() method), add the following new lines:
```
self.declare_parameter(
    name="radius",
    value=0.5 # meters
)
```
  Here, we're declaring a ROS parameter called radius and assigning a default value of 0.5 to it, to represent the desired radius of the circle (in meters).
3. Finally, somewhere in the timer_callback() method, you should be defining the desired radius of the circle. Modify this as follows:
```
radius = self.get_parameter("radius").get_parameter_value().double_value
```
  The radius of the circle that the robot will move through is now based on the value of the radius parameter, rather than a static value.
In order to test this, first fire up the Empty World simulation in TERMINAL 1:
```
ros2 launch turtlebot3_gazebo empty_world.launch.py
```
Next, in TERMINAL 2, run the param_circle.py node:
```
ros2 run part3_beyond_basics param_circle.py
```
The robot should start to move in a circle. To begin with, the radius of this circle should be 0.5 meters, based on the default value that we assigned to the parameter in our code.
Next, open up another terminal instance (TERMINAL 3), and run the following command to list all the parameters that are currently active/available on our ROS network:
```
ros2 param list
```
This may be quite a big list. Parameters are listed under the nodes that define them, so to filter the list, provide the name of the node as well:
```
ros2 param list /param_circle
```
There should only be a handful of parameters listed now, including radius.
We can now change the value of this parameter while our param_circle.py node is running, and therefore change the size of the circle that the robot is currently following. We can do this from the command line, without having to stop our param_circle.py node or make any changes to it. Again, in TERMINAL 3:
```
ros2 param set /param_circle radius 1.2
```
Try setting a range of different values and observe how the robot's behaviour changes in the simulated world!
Once you're done, close down the param_circle.py node and the Gazebo Simulation by entering Ctrl+C in terminals 1 and 2 respectively.

Summary¶

Parameters allow us to change the behaviour of things during runtime. We'll also explore some other uses for them in the next part of this course (Part 4).

We've also learnt some key launch file techniques now too, so let's move on to another more advanced and very important topic...

Laser Displacement Data and The LiDAR Sensor¶

As you'll recall from Part 2, odometry is really important for robot navigation, but it can be subject to drift and accumulated error over time. You may have observed this in simulation during Part 2 Exercise 5, and you would most certainly notice it if you were to do the same on a real robot. Fortunately, The Waffles have another sensor on-board which provides even richer information about the environment, and we can use this to supplement the odometry information and enhance the robot's navigation capabilities.

Introducing the LaserScan Interface¶

Exercise 3: Using RViz to Visualise LaserScan Data¶

We're now going to place the robot in a more interesting environment than the "empty world" that we've been working with so far...

In TERMINAL 1 enter the following command to launch this:
```
ros2 launch turtlebot3_gazebo turtlebot3_world.launch.py
```

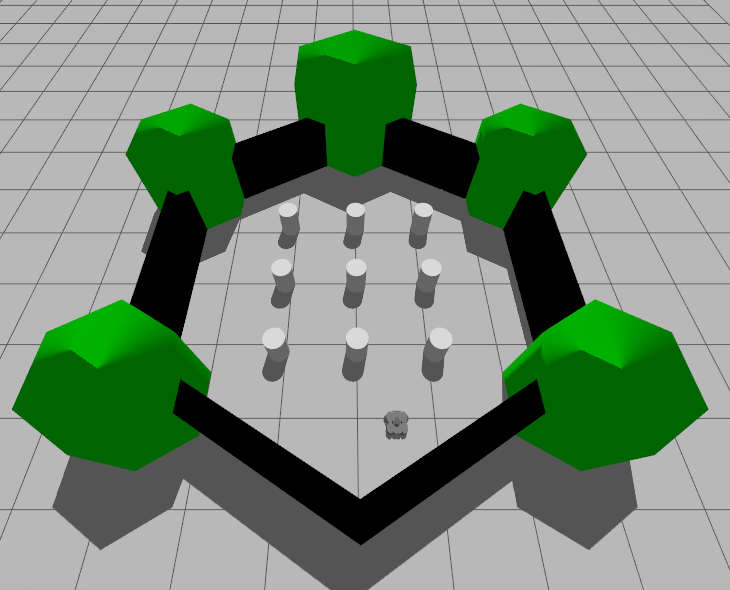

A Gazebo simulation should now be launched with a TurtleBot3 Waffle in a new environment:
In TERMINAL 2 enter the following:
```
ros2 launch tuos_tb3_tools rviz.launch.py environment:=sim
```

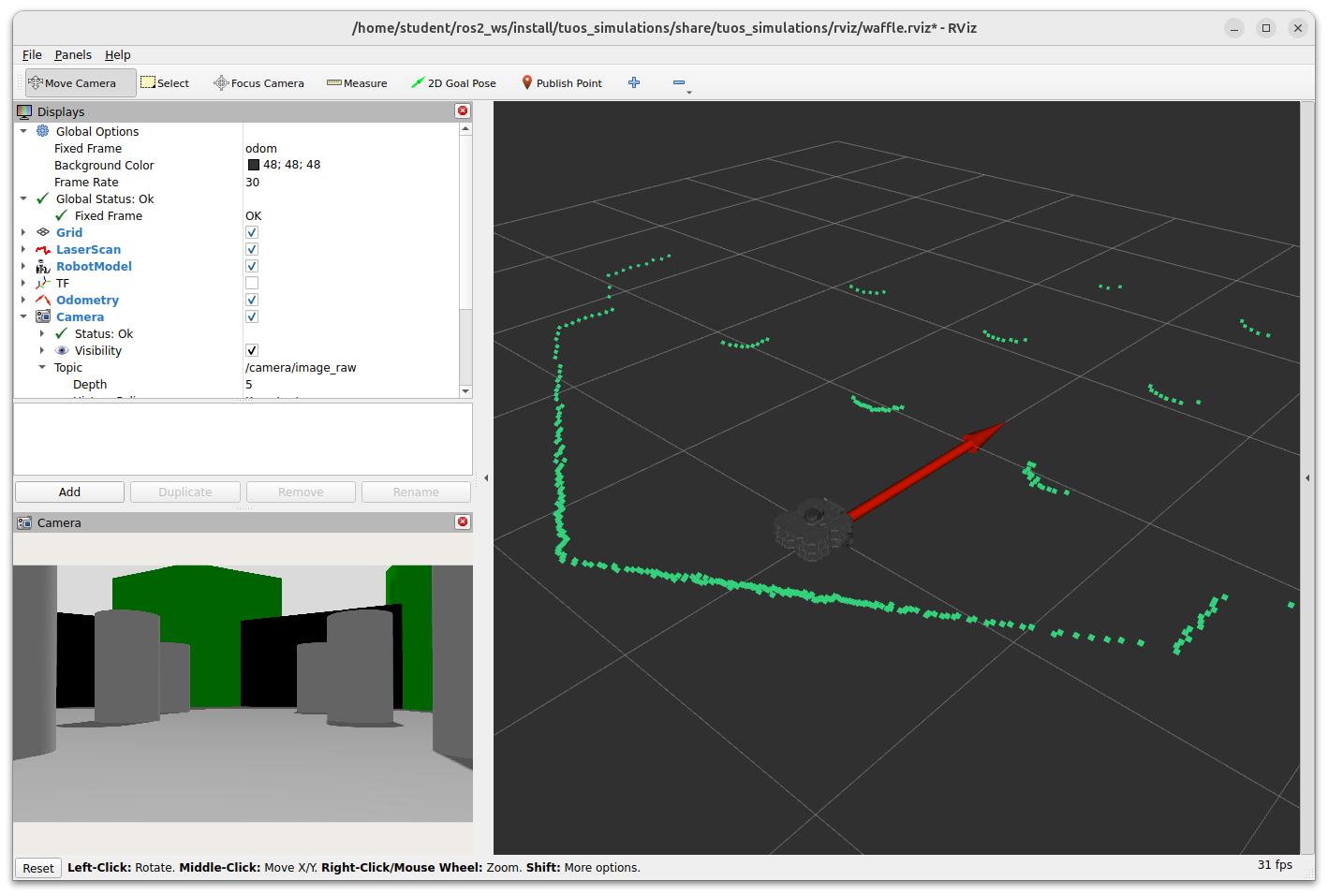

On running the command a new window should open:

This is RViz, which is a ROS tool that allows us to visualise the data being measured by a robot in real-time.

The green dots scattered around the robot represent laser displacement data which is measured by the LiDAR sensor located on the top of the robot, allowing it to measure the distance to any obstacles in its surroundings.

The LiDAR sensor spins continuously, sending out laser pulses as it does so. These laser pulses are reflected from any objects and sent back to the sensor. Distance can then be determined based on the time it takes for the pulses to complete the full journey (from the sensor, to the object, and back again), by a process called "time of flight". Because the LiDAR sensor spins and performs this process continuously, a full 360° scan of the environment can be generated.

In this case (because we are working in simulation here) the data represents the objects surrounding the robot in its simulated environment, so you should notice that the green dots produce an outline that resembles the objects in the world that is being simulated in Gazebo (or partially at least).
Laser displacement data from the LiDAR sensor is published by the robot to the /scan topic. We can use the ros2 topic info command to find out more about the nodes that are publishing and subscribing to this topic, as well as the type of interface used to transmit this topic data. In TERMINAL 3 enter the following:
```
ros2 topic info /scan
```
```
Type: sensor_msgs/msg/LaserScan
Publisher count: 1
Subscription count: 0
```

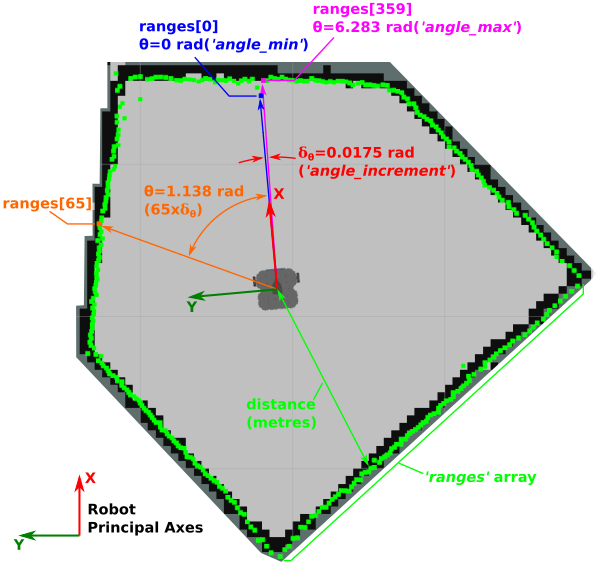

As we can see from above, /scan data is of the sensor_msgs/msg/LaserScan type, and we can find out more about this interface using the ros2 interface show command:

ros2 interface show sensor_msgs/msg/LaserScan

# Single scan from a planar laser range-finder

std_msgs/Header header # timestamp in the header is the acquisition time of
        builtin_interfaces/Time stamp
                int32 sec
                uint32 nanosec
        string frame_id
                             # the first ray in the scan.
                             #
                             # in frame frame_id, angles are measured around
                             # the positive Z axis (counterclockwise, if Z is up)
                             # with zero angle being forward along the x axis

float32 angle_min            # start angle of the scan [rad]
float32 angle_max            # end angle of the scan [rad]
float32 angle_increment      # angular distance between measurements [rad]

float32 time_increment       # time between measurements [seconds] - if your scanner
                             # is moving, this will be used in interpolating position
                             # of 3d points
float32 scan_time            # time between scans [seconds]

float32 range_min            # minimum range value [m]
float32 range_max            # maximum range value [m]

float32[] ranges             # range data [m]
                             # (Note: values < range_min or > range_max should be discarded)
float32[] intensities        # intensity data [device-specific units].  If your
                             # device does not provide intensities, please leave
                             # the array empty.

Interpreting LaserScan Data¶

The LaserScan interface is a standardised ROS message interface (from the sensor_msgs package) that any ROS Robot can use to publish data that it obtains from a Laser Displacement Sensor such as the LiDAR on the TurtleBot3.

ranges is an array of float32 values (array data-types are suffixed with []). This is the part of the message containing all the actual distance measurements that are being obtained by the LiDAR sensor (in meters).

Consider a simplified example here, taken from a TurtleBot3 in a different environment:

As illustrated in the figure, we can associate each data-point of the ranges array to an angular position by using the angle_min, angle_max and angle_increment values that are also provided within the LaserScan message. We can use the ros2 topic echo command to find out what their values are:

$ ros2 topic echo /scan --field angle_min --once
0.0
---

$ ros2 topic echo /scan --field angle_max --once
6.28000020980835
---

$ ros2 topic echo /scan --field angle_increment --once
0.01749303564429283
---

Question

What do these values represent? (Compare them with the figure above)

Tip

Notice how we were able to access specific variables within the /scan data using the --field flag, and ask the command to only provide us with a single message by using --once?

The ranges array contains 360 values in total, i.e. a distance measurement at every 1° (an angle_increment of 0.0175 radians) around the robot. The first value in the ranges array (ranges[0]) is the distance to the nearest object directly in front of the robot (i.e. at θ = 0 radians, or angle_min). The last value in the ranges array (ranges[359]) is the distance to the nearest object at 359° (i.e. θ = 6.283 radians, or angle_max) from the front of the robot, i.e.: 1 degree to the right of the X-axis. ranges[65], for example, would represent the distance to the closest object at an angle of 65° (1.138 radians) from the front of the robot (anti-clockwise), as shown in the figure.

The LaserScan message also contains the parameters range_min and range_max, which represent the minimum and maximum distances (again, in meters) that the LiDAR sensor can detect, respectively. Use the ros2 topic echo command to report these directly too.

Questions

What is the maximum and minimum range of the LiDAR sensor? Use the same technique as we used above to find out.

Consider the note against ranges in the ros2 interface show output earlier:

float32[] ranges    # range data [m]
                    # (Note: values < range_min or > range_max should be discarded)

(this might be worth thinking about).

Finally, use the ros2 topic echo command again to display the ranges portion of the LaserScan data. There's a lot of data here (360 data points per message in fact, as you know from above!):

ros2 topic echo /scan --field ranges

We're dropping the --once option now, so that we can see the data as it comes in, in real-time. You might need to expand the terminal window so that you can see all the data points; data will be bound by square brackets [], and there should be a --- at the end of each message too, to help you confirm that you are viewing the whole thing.

The main thing you'll notice here is that there's lots of information, and it changes rapidly! As you have already seen though, it is the numbers that are flying by here that are represented by green dots in RViz. Head back to the RViz screen to have another look at this now. As you'll no doubt agree, this is a much more useful way to visualise the ranges data, and illustrates how useful RViz can be for interpreting what your robot can see in real-time.

What you may also notice is several inf values scattered around the array. These represent sensor readings that are outside the sensor's measurement range (i.e. greater than range_max or less than range_min), so the sensor can't report a distance measurement in such cases. Remember from above:

(Note: values < range_min or > range_max should be discarded)

Note

This behaviour is different on the real robots! Be aware of this when developing code for real robots!!

Stop the ros2 topic echo command from running in the terminal window by entering Ctrl+C in TERMINAL 3. Also close down the RViz process running in TERMINAL 2 now as well, but leave the simulation (in TERMINAL 1 running).

Exercise 4: Building a LaserScan Callback Function¶

LaserScan data presents us with a new challenge: processing large datasets. In this exercise we'll look at some basic approaches that can be taken to deal with this data, and get something meaningful out of it that can be used in your robot applications.

In TERMINAL 2, navigate into the scripts folder of your part3_beyond_basics package:
```
cd ~/ros2_ws/src/part3_beyond_basics/scripts/
```
Create a new file called lidar_subscriber.py (using touch), make this executable (using chmod) and then define this as a package executable in your CMakeLists.txt file (if you need help with any of this, refer back to the earlier exercise).
Open up the file in VS Code, then see below for the instructions on how to build it:

Building a LaserScan Subscriber

Head back to the terminal and build with colcon:

cd ~/ros2_ws/

colcon build --packages-select part3_beyond_basics --symlink-install

source ~/.bashrc

With all of that done, you're ready to go. Run the node using ros2 run:
```
ros2 run part3_beyond_basics lidar_subscriber.py
```
Open another terminal (so you can still see the outputs from your lidar_subscriber.py node). Launch the teleop_keyboard node, and drive the robot around, noting how the outputs from your lidar_subscriber.py node change as you do so.
Close everything down now (including the simulation running in TERMINAL 1). Then launch the "empty world" simulation again:
```
ros2 launch turtlebot3_gazebo empty_world.launch.py
```
Go back to TERMINAL 2 and launch your lidar_subscriber.py node again:
```
ros2 run part3_beyond_basics lidar_subscriber.py
```
What output do you see from this now?

You should notice that your lidar_subscriber.py node reports nan meters now. That's because there's nothing in the environment for the LiDAR sensor to detect, so all readings are out of range and hence our analysis of the 40° arc of LiDAR readings at the front of the robot has filtered out everything and therefore returned nan (not a number).

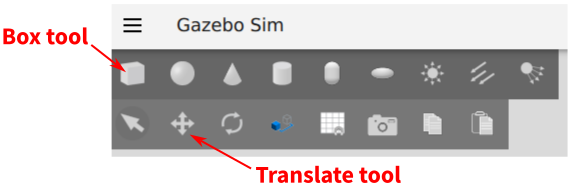

Use the Box tool in Gazebo to place a box in the environment.
Click the Translate tool to move the box around until the lidar_subscriber.py node returns some reading that aren't nan again.
Move the box around some more to observe what our analysis of the LaserScan data can detect, and where the box falls out of the detectable range.
Think about how you could adapt the callback function of the lidar_subscriber.py node so that it picks up on more than one LaserScan subset, so that it could detect situations such as this (for example):

Simultaneous Localisation and Mapping (SLAM)¶

In combination, the data from the LiDAR sensor and the robot's odometry (the robot pose specifically) are really powerful, and allow some very useful conclusions to be made about the environment a robot is operating within. One of the key applications of this data is "Simultaneous Localisation and Mapping", or SLAM. This is a tool that's built into ROS, and allows a robot to build up a map of its environment and locate itself within that map at the same time! We'll now look at how easy it is to leverage this in ROS.

Exercise 5: Building a map of an environment with SLAM¶

Close down all ROS processes that are running now by entering Ctrl+C in each terminal.
We're going to launch our robot into another new simulated environment now, which we'll be creating a map of using SLAM! To launch the simulation enter the following command in TERMINAL 1:
```
ros2 launch tuos_simulations nav_world.launch.py
```
The environment that launches should look like this:
Now launch SLAM to start building a map of this environment. In TERMINAL 2, launch SLAM as follows:
```
ros2 launch tuos_tb3_tools cartographer.launch.py environment:=sim
```
This will launch RViz again, where you should see a top-down view of an environment with a model of the robot, surrounded by some dots representing the real-time LiDAR data.

SLAM has already started building a map of the boundaries that are currently visible to the robot, based on its starting position in the environment.

If you leave this for a minute the walls of the arena will start to become visible in RViz, and the floor will start to turn a lighter grey. As time passes the SLAM algorithms become more certain of what is being observed in the environment, allowing the boundaries and the free space to be defined.
In TERMINAL 3 launch the teleop_keyboard node (you should know how to do this by now). Re-arrange and re-size your windows so that you can see Gazebo, RViz and the teleop_keyboard terminal instances all at the same time.
Drive the robot around the arena slowly, using the teleop_keyboard node, and observe how the map is constantly being updated and expanded in the RViz window as you do so.
As you're doing this open up another terminal instance (TERMINAL 4) and run the odom_subscriber.py node that you created back in Part 2:
```
ros2 run part2_navigation odom_subscriber.py
```
This will provide you with the robot's X and Y coordinates (in meters) within the environment, as you are driving it around, and you can use this to determine the centre coordinates of the four circles (A, B, C & D) that are printed on the arena floor.

Drive your robot into each of these circular zones and stop the robot inside them.

Record the coordinates of each zone marker in a table such as the one below.

Zone X Position (m) Y Position (m)

START 0.5 -0.04

A

B

C

D
Continue to drive the robot around until a full map of the environment has been generated.
Once you have built a complete map of the environment (and you've got the coordinates of all the circles), you can then save your map for later use. We do this using a ROS map_server package. First, stop the robot by pressing S in TERMINAL 3 and then enter Ctrl+C to shut down the teleop_keyboard node.
Then, remaining in TERMINAL 3, navigate to the root of your part3_beyond_basics package directory and create a new folder in it called maps:
```
cd ~/ros2_ws/src/part3_beyond_basics/
```
```
mkdir maps
```
Navigate into this new directory:
```
cd maps/
```
Then, run the map_saver_cli node from the map_server package to save a copy of your map:
```
ros2 run nav2_map_server map_saver_cli -f MAP_NAME
```
Replacing MAP_NAME with a name of your choosing.

This will create two files: a MAP_NAME.pgm and a MAP_NAME.yaml file, both of which contain data related to the map that you have just created. The .pgm file contains an Occupancy Grid Map (OGM), which is used for autonomous navigation in ROS. Have a look at the map by launching it in an Image Viewer Application called eog:
```
eog MAP_NAME.pgm
```
A new window should launch containing the map you have just created with SLAM and the map_saver_cli node:

White regions represent the area that your robot has determined is open space and that it can freely move within. Black regions, on the other hand, represent boundaries or objects that have been detected. Any grey area on the map represents regions that remain unexplored, or that were inaccessible to the robot.
Compare the map generated by SLAM to the actual simulated environment (in Gazebo).
Questions
- How accurately did your robot map the environment?
- What might impact this when working in a real-world environment?
Close the image using the button on the right-hand-side of the eog window.

Summary of SLAM¶

See how easy it was to map an environment in the previous exercise? This works just as well on a real robot in a real environment too (as you'll observe in the lab).

This illustrates the power of ROS: having access to tools such as SLAM, which are built into the ROS framework, makes it really quick and easy for a robotics engineer to start developing robotic applications on top of this. Our job was made even easier here since we used some packages that had been pre-made by the manufacturers of our TurtleBot3 Robots to help us launch SLAM with the right configurations for our particular robot. If you were developing a robot yourself, or working with a different type of robot, then you might need to do a bit more work in setting up and tuning the SLAM tools to make them work for your own application.

Wrapping Up¶

As we learnt in Part 2, a robot's odometry is determined by dead-reckoning and control algorithms based on this alone (like the move_square.py node) may be subject to drift and accumulated error.

Ultimately then, a robot needs additional information to pinpoint its precise location within an environment, and thus enhance its ability to navigate effectively and avoid crashing into things!

This additional information can come from a LiDAR sensor, which was discussed earlier. We explored where this data is published to, how we access it, and what it tells us about a robot's immediate environment. We then looked at some ways odometry and laser displacement data can be combined to perform advanced robotic functions such as the mapping of an environment. This is all complicated stuff but, using ROS, we can leverage these tools with relative ease, which illustrates just how powerful ROS can be for developing robotic applications quickly and effectively without having to re-invent the wheel!

WSL-ROS2 Managed Desktop Users: Save your work!¶

Remember, the work you have done in the WSL-ROS2 environment during this session will not be preserved for future sessions or across different University machines automatically! To save the work you have done here today you should now run the following script in any idle WSL-ROS2 Terminal Instance:

wsl_ros backup

This will export your home directory to your University U:\ Drive, allowing you to restore it on another managed desktop machine the next time you fire up WSL-ROS2.

Zone	X Position (m)	Y Position (m)
START	0.5	-0.04
A
B
C
D
